Name: ThermaSol WHSPSS
Brand: ThermaSol
SKU: WHSPSS-PC
Price: 9331.0 USD
Availability: InStock

Note: Some finishes are not readily in stock and have an extended lead time of up to 4 weeks. See "Technical" for details. Steam generator sold separately.

Description

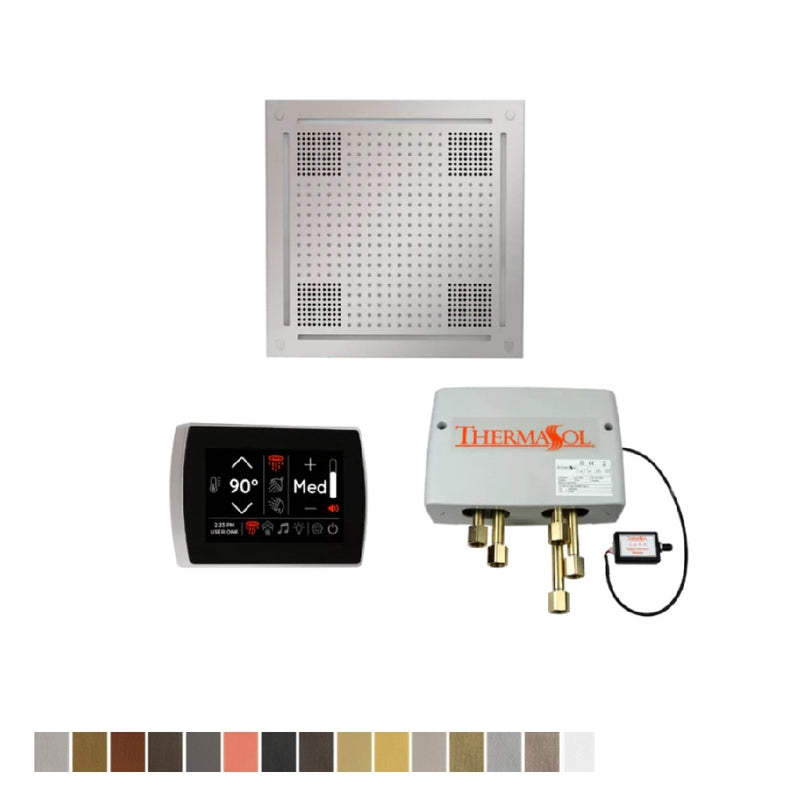

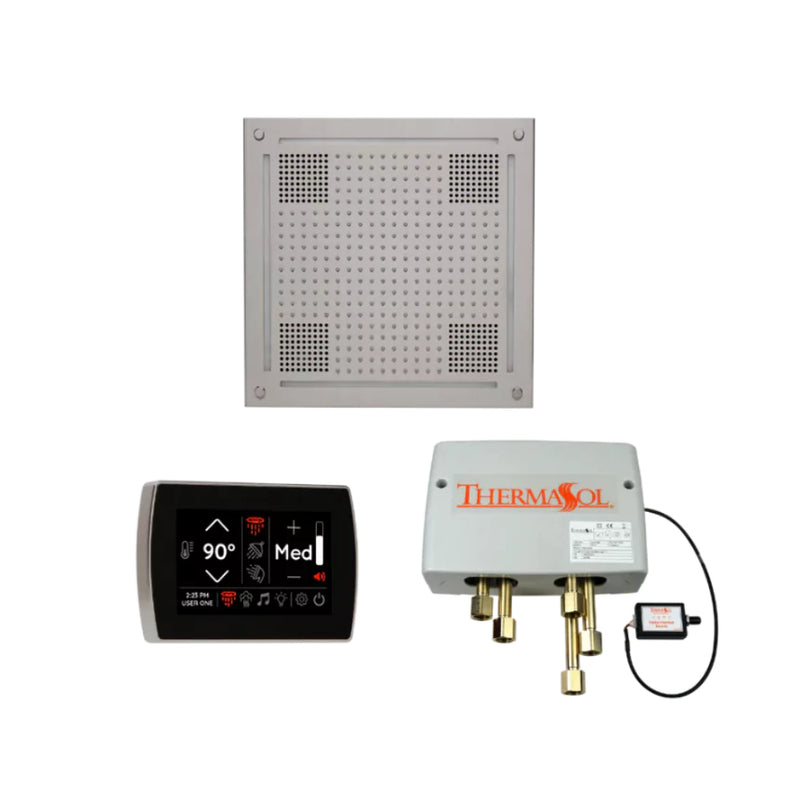

ThermaSol's Wellness Shower SignaTouch Package delivers spa-caliber performance through intelligent integration of three core components: the SignaTouch 5" LCD touchscreen controller with Bluetooth connectivity, a precision digital shower valve, and the HydroVive 18 multi-sensory showerhead. The system grants granular command over water temperature, volume, lighting, and audio through an intuitive interface that installs vertically or horizontally. The digital valve employs dual stepper motors and ceramic disc cartridges to achieve 400 discrete positioning increments, with remote placement capability up to 30 feet from the shower enclosure. HydroVive integrates full-spectrum LED illumination, distortion-free audio, and an engineered rainhead into a unified module, while the integrated diverter enables selection among multiple shower outlets. Available in finishes designed to complement your bathroom aesthetic, this system transforms daily showering into a curated wellness ritual.

See Technical tab for Finish availability

Steam generator sold separately

Features

SignaTouch Control

Flexible installation (vertical and horizontal)
Steam Shower Control
Operates Smart Shower Valve
Operates HydroVive
Operates Serenity Rainhead
Touchscreen Control
Steam time control
Steam temperature control
Memory Settings
2 Customizable User Settings
Date display
Time display
Fahrenheit or Celsius Settings

Digital Shower Valve

Precise temperature control
Precise water volume control
Eliminates exposed valves and trims
Ceramic disc Fluhs
2 industrial grade stepper motors
Solenoid valve systems
Integrated diverter
Three output valves
IAPMO approved

HydroVive 18

Ceiling mounted light, sound and rainhead system - all in a single self-contained module
Lighting
- Full-spectrum LED Lighting
- 1600 lumens max
- 200 Full-color luminous LED (R,G,B,W)
- Color Changing “Mood Lighting”
- Preset Chromatherapy Chakras
- Custom user-programmable “any color”
Audio
- Distortion-free sound
- Amplifier: 100Watt RMS,
- Built-in Digital Signal Processor
- Built-in Bluetooth v4.2
- 2-1” Titanium Dome Tweeter with Ferro fluid-cooled aluminum voice coil
- 1- 4” woofer
- 1-4” passive radiator
- Complete sound settings control
  - volume
  - treble
  - mid-range
  - bass
- Stereo RCA input
- Built-in Bluetooth
300 easy-clean neoprene jets
- 40-80 PSI
- 1.8GPM Water Jets
- 300 CEC Approved
Powered by:
- 24V DC
- 30 Watts power supply (provided)
Designed, engineered, and crafted in the U.S.A

Includes

SignaTouch Control
Digital Shower Valve
HydroVive 18

Specifications

Model	WHSPSS
Control	SignaTouch
Construction	Acrylic
Display	5" Capacitive Touch Screen
Display Full Color	16.7M
Display Resolution	480 x 800
Interface	Single Touch
Shipping Weight	1.25 lbs
Width	5.7"
Depth	1.25"
Height	4.8"
Insallation	In Shower
Model	Power Distribution Module
Construction	ABS Plastic
Power Supply	UL Listed Class 2 & 11, (03-7142)
Internal Operating Voltage	24V DC, 60 Watt
Model	Digital Shower Valve
2 Inputs	1/2" FNPT
3 Outputs	1/2" FNPT
Power Supply
Input	110VAC, 0.5 Amps
Output	15VDC, 3 Amps required
Shipping Weight	10.65 lbs
Width	11"
Depth	3"
Height	7"
Model	HydroVive
Construction Material	Machined Brass
Function Lights	200 Full-color luminous LED
Water Supply	3/8”, 40-80 PSI, 1.8GPM
Water Jets	300
CEC Approved	Yes
Amplifier	100Watt RMS
Digital Signal Processor	Built-In
Weight	37 lbs
Width	18"
Depth	8"
Height	18"
