Note: Some finishes are not readily in stock and have an extended lead time of up to 4 weeks. See "Technical" for details. Steam generator not included.
Description

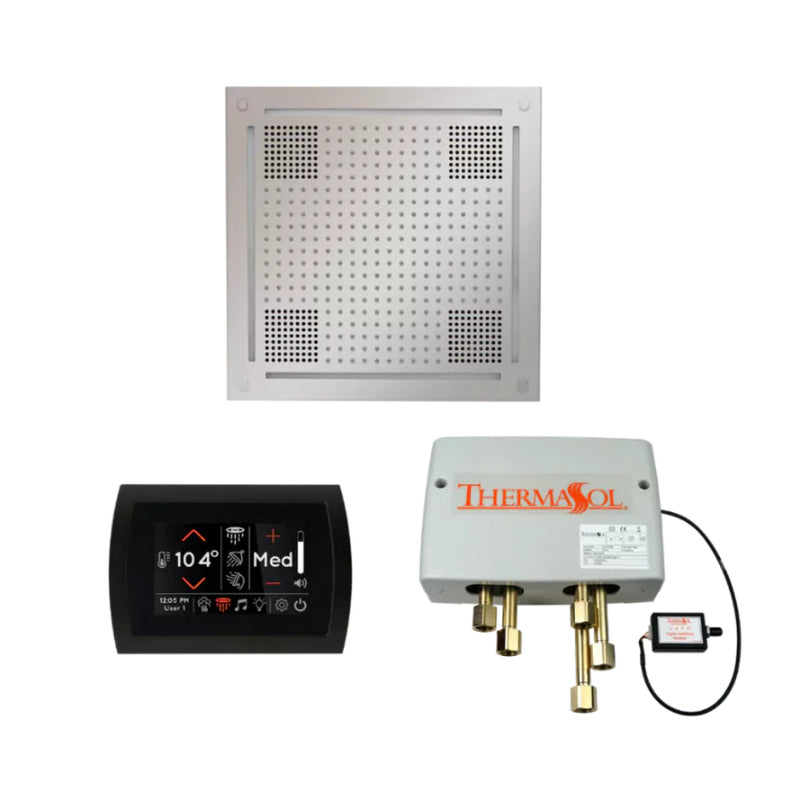

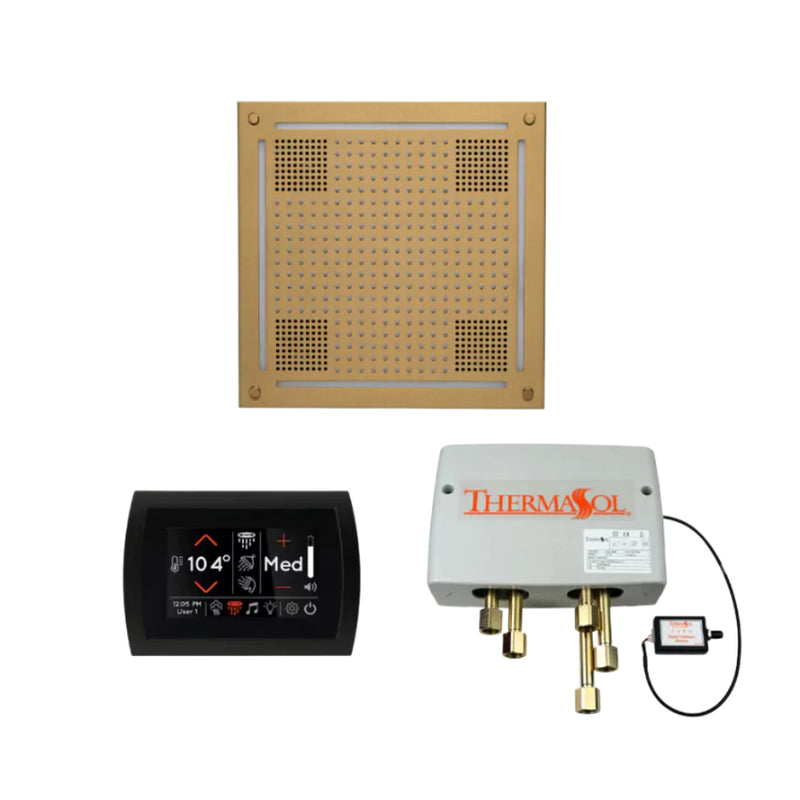

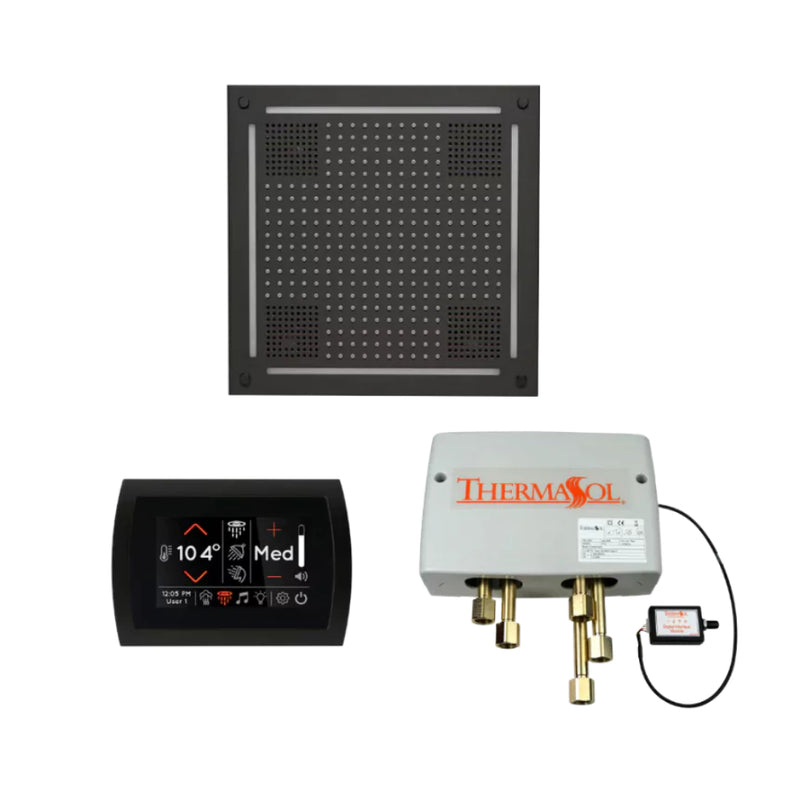

Transform your daily shower into a luxury spa retreat with the ThermaSol WHSPSR Wellness Shower SignaTouch Package. This sophisticated system combines an intuitive LCD touchscreen controller with integrated Bluetooth, full-spectrum LED lighting, and premium audio technology to deliver a multi-sensory showering experience. The advanced digital valve features ceramic disc cartridges and dual stepper motors offering 400 precise positions for exact water temperature and volume control, with installation flexibility up to 30 feet from the shower head. The HydroVive rainhead, Serenity Light, and Sound system work seamlessly together, while the integrated diverter lets you switch between outlets effortlessly. Mount the SignaTouch controller vertically or horizontally to suit your bathroom layout. Available in multiple finishes to complement any décor, this spa-quality system puts complete control of your shower environment at your fingertips.
See Technical tab for Finish availability.
Steam generator not included.
Features
SignaTouch Control
- Flexible installation (vertical and horizontal)
- Steam Shower Control
- Operates Smart Shower Valve
- Operates HydroVive
- Operates Serenity Rainhead
- Touchscreen Control
- Steam time control
- Steam temperature control
- Memory Settings
- 2 Customizable User Settings
- Date display
- Time display
- Fahrenheit or Celsius Settings
Digital Shower Valve
- Precise temperature control
- Precise water volume control
- Eliminates exposed valves and trims
- Ceramic disc Fluhs
- 2 industrial grade stepper motors
- Solenoid valve systems
- Integrated diverter
- Three output valves
- IAPMO approved
HydroVive 18
- Ceiling mounted light, sound and rainhead system - all in a single self-contained module
- Lighting
- Full-spectrum LED Lighting
- 1600 lumens max
- 200 Full-color luminous LED (R,G,B,W)
- Color Changing “Mood Lighting”
- Preset Chromatherapy Chakras
- Custom user-programmable “any color”
- Audio
- Distortion-free sound
- Amplifier: 100Watt RMS,
- Built-in Digital Signal Processor
- Built-in Bluetooth v4.2
- 2-1” Titanium Dome Tweeter with Ferro fluid-cooled aluminum voice coil
- 1- 4” woofer
- 1-4” passive radiator
- Complete sound settings control
- volume
- treble
- mid-range
- bass
- Stereo RCA input
- Built-in Bluetooth
300 easy-clean neoprene jets
-
- 40-80 PSI
- 1.8GPM Water Jets
- 300 CEC Approved
- Powered by:
- 24V DC
- 30 Watts power supply (provided)
- Designed, engineered, and crafted in the U.S.A
Includes
- SignaTouch Control
- Digital Shower Valve
- HydroVive 18
Specifications
|
Model
|
WHSPSR
|
|
Control
|
SignaTouch
|
|
Construction
|
Acrylic
|
|
Display
|
5" Capacitive Touch Screen
|
|
Display Full Color
|
16.7M
|
|
Display Resolution
|
480 x 800
|
|
Interface
|
Single Touch
|
|
Shipping Weight
|
1.25 lbs
|
|
Width
|
5.7"
|
|
Depth
|
1.25"
|
|
Height
|
4.8"
|
|
Installation
|
In Shower
|
|
Model
|
Power Distribution Module
|
|
Construction
|
ABS Plastic
|
|
Power Supply
|
UL Listed Class 2 & 11, (03-7142)
|
|
Internal Operating Voltage
|
24V DC, 60 Watt
|
|
Model
|
Digital Shower Valve
|
|
2 Inputs
|
1/2" FNPT
|
|
3 Outputs
|
1/2" FNPT
|
|
Power Supply
|
|
|
Input
|
110VAC, 0.5 Amps
|
|
Output
|
15VDC, 3 Amps required
|
|
Shipping Weight
|
10.65 lbs
|
|
Width
|
11"
|
|
Depth
|
3"
|
|
Height
|
7"
|
|
Model
|
HydroVive
|
|
Construction Material
|
Machined Brass
|
|
Function Lights
|
200 Full-color luminous LED
|
|
Water Supply
|
3/8”, 40-80 PSI, 1.8GPM
|
|
Water Jets
|
300
|
|
CEC Approved
|
Yes
|
|
Amplifier
|
100Watt RMS
|
|
Digital Signal Processor
|
Built-In
|
|
Weight
|
37 lbs
|
|
Width
|
18"
|
|
Depth
|
8"
|
|
Height
|
18"
|
Technical
Installation Manual
Spec Sheet
Finish Availability
