Note: Some finishes are not readily in stock and have an extended lead time of up to 4 weeks. See "Technical" for details. Steam generator sold separately.
Description

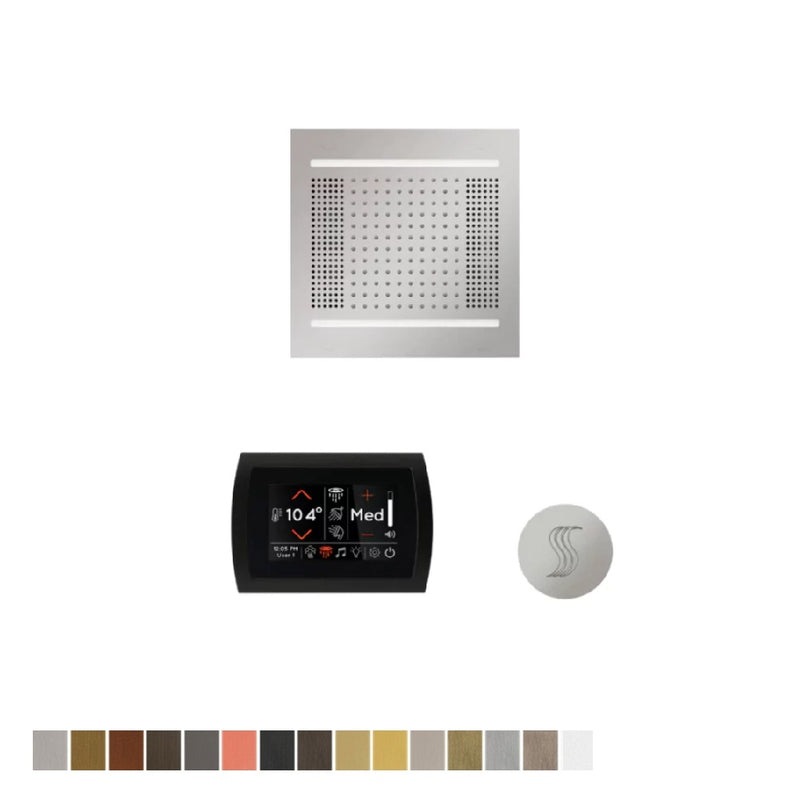

Transform your bathing ritual with the ThermaSol WH14STPSR, a sophisticated wellness solution engineered for seamless home integration. This complete system features a 5" Flushmount Touchscreen that sits flush with your wall for a refined aesthetic, the HydroVive 14 Rainhead delivering luxurious water coverage, and a SteamVection Steamhead calibrated for optimal steam performance. Built for those who value both technical excellence and design sophistication, this package provides the control and therapeutic benefits of a professional steam environment with the polished finish of premium residential engineering.
See Technical tab for Finish availability
Steam generator sold separately
Features
SignaTouch Series Control
- Steam Shower Control
- 15 designer finishes
- Bluetooth built-in
- Operates Digital Shower Valve (sold separately)
- Operates SteamVection Steamhead (sold separately)
- Operates Serenity Light, Sound, Rainhead (sold separately)
- Touchscreen Control
- Time & Temp Control
- Memory Settings
- 2 Customizable User Settings
- Date & Time Display
- Designed, engineered, and crafted in the U.S.A
- Dimensions: 5 3⁄4" x 4" x 3⁄4"
- Lifetime Warranty (Parts and Labor - 2 years)
HydroVive 14
- Ceiling mounted light, sound and rainhead system - all in a single self-contained module
- Lighting
- Full-spectrum LED Lighting
- 1600 lumens max
- 84 Full-color luminous LED (R,G,B,W)
- Color Changing “Mood Lighting”
- Preset Chromatherapy Chakras
- Custom user-programmable “any color”
- Audio
- Distortion-free sound
- Amplifier: 100Watt RMS,
- Built-in Digital Signal Processor
- Built-in Bluetooth v4.2
- 1" x 5" Full range dual driver speaker
- 1- 2” subwoofer module with tuned radiator
- Complete sound settings control
- volume
- treble
- mid-range
- bass
- 120 easy-clean neoprene jets
- 40-80 PSI
- 1.8GPM Water Jets
- CEC Approved
- Powered by:
- 24V DC
- 30 Watts power supply (provided)
- Designed, engineered, and crafted in the U.S.A
- Dimension: 14"W x 14"H
- 5-year replacement warranty (Limited Finish warranty)
Includes
SignaTouch Series Control
- SignaTouch Control
- Silicone
- Installation Manual
- Warranty
- Static cling warning label
Powder Distribution Module
HydroVive 14
- HydroVive 14
- Wood screws
- Silicone
- 25' Yellow M12 Cable
- 25' Audio Cable
- Installation instructions
- Warranty
Specifications
|
Model
|
WH14STPSR
|
|
Model
|
STCM
|
|
Construction
|
6061 Aluminum
|
|
Display
|
5" Capacitive Touch Screen
|
|
Display Full Color
|
16.7M
|
|
Display resolution
|
480 x 800
|
|
Interface
|
Single Touch
|
|
Shipping Weight
|
1.25lbs
|
|
Width
|
5.7"
|
|
Depth
|
1.25"
|
|
Height
|
4.8"
|
|
Installation
|
In Shower
|
|
Model
|
PDM
|
|
Construction
|
ABS Plastic
|
|
Power Supply
|
UL Listed Class 2 & II, (03-7142)
|
|
Internal Operating Voltage
|
24V DC, 60 Watt
|
|
Model
|
HVLSR14
|
|
Construction Material
|
Machined Brass
|
|
Function Lights
|
84 Full-color luminous LED
|
|
Water Supply
|
3/8”, 40-80 PSI, 1.8GPM
|
|
Water Jets
|
120
|
|
CEC Approved
|
Yes
|
|
Amplifier
|
100Watt RMS
|
|
Digital Signal Processor
|
Built-In
|
|
Weight
|
22lbs
|
|
Width
|
14"
|
|
Depth
|
8"
|
|
Height
|
14"
|
Technical
Installation Manual
Spec Sheet
Finish Availability
