NOTE: This product requires additional components for operation, sold separately. See *Required Components for more details.
Description

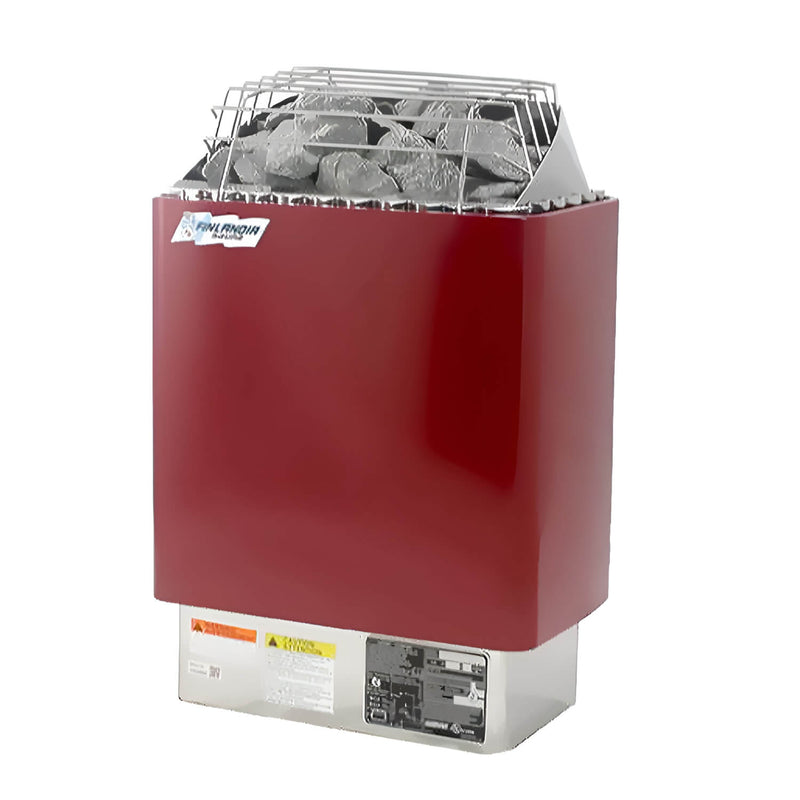

The 6kW wall-mounted Finlandia FIN-60 electric sauna heater is engineered for home saunas up to 300 cubic feet (CF). Stones included.
The Finlandia FIN-60 heater is available in 240V, single-phase (1PH) and 208V, three-phase (3PH) configurations. The sauna unit may be ordered with the standard red enamel finish (FIN-60) or the optional stainless-steel exterior (FIN-60S).
When you buy a sauna, value and quality are important. Finlandia sauna heating units are made by Harvia manufacturing company and are designed, engineered, and crafted in Finland.
The FIN-60 carries a limited lifetime warranty and is fully serviceable. All Finlandia and Harvia sauna heaters are UL and ETL listed for your safety.
*Required Components
The FIN-60 requires additional components for operation, sold separately.
- ForĀ 240V/1PH operation, the CX170 control or F1T control with the FX402 contactor can be used.
- For 208V/3PH operation, the CX170Ā control or F2T control with the FX303 contactor can be used.
-
For commercial applications, the FIN-60 can be run 24 hours a day with the CX170Ā control and 24H7D time clock, or the F2Ā control with its respective contactor and 24H7D time clock.
Features
- 240V/1PH Operation with CX170 or F1T control with FX402 contactor (sold separately)
- 208V/3PH Operation with CX170 or F2T control with FX303 contactor (sold separately)
- 24-Hour Operation with CX170 control and 24H7D time clock or F2 control with FX303 contactor and 24H7D time clock (sold separately)
- Wall-mounted
- Stainless steel elements
- Requires wall-mounted time/temperature control
- Requires contactor with CX170, F-1, or F-2T controls (sold separately)
- Available in 240V/1PH and 208V/3PH operation
- Stainless steel construction
- Stainless Steel exterior
- Industrial grade, serviceable heating elements
- Exceptionally large rock capacity
- Direct rock-to-heating element contact
- 24"H x 16"W x 11"D
- For sauna rooms up to 300 cu. ft.
Includes
- Sauna heater
- 45 lbs of Igneous sauna stones
- Installation and operation manual
- Manufacturer's warranty
Specifications
|
Model
|
FIN-60
|
|
Kilowatt Rating
|
6.0 KW
|
|
Cubic Feet
|
Ā
|
|
Minimum
|
170 CF
|
|
Maximum
|
300 CF
|
|
Weight
|
Ā
|
|
Heater Weight
|
40 lbs
|
|
Shipping Weight with Sauna Stones
|
90 lbs
|
|
Nominal Amperage
|
Ā
|
|
240V, Single Phase
|
25 Amps
|
|
208V, 3-Phase
|
16.7 Amps
|
|
Recommended Minimum Copper Wire Supply
|
Ā
|
|
240V, Single Phase
|
10 AWG
|
|
208V, 3-Phase
|
12 AWG
|
|
Dimensions
|
Ā
|
|
Width
|
16"
|
|
Depth
|
11"
|
|
Height
|
24"
|
