Description
The Mr.Steam CX Generator Package represents the next generation of commercial steam power, engineered for larger health clubs and spa facilities with steam room volumes up to 5,000 cubic feet. The CX Generator delivers peak performance with quieter operation, simplified installation, and an advanced touch‑screen control for intuitive management. Each package includes the CX Generator, CX Control, Commercial SteamHead, Condensation Pan, and a factory‑installed AutoFlush System (based on selected size), providing everything needed for a complete, high‑capacity steam environment. The result is a seamless, elevated steam experience that feels memorable, revitalizing, and deeply satisfying.
-
30kW - For sauna rooms from 1001 to 1250 cubic feet
-
40kW - For sauna rooms from 1251 to 1600 cubic feet
-
48kW - For sauna rooms from 1601 to 2000 cubic feet
-
60kW - For sauna rooms from 2001 to 2500 cubic feet
-
72kW - For sauna rooms from 2501 to 3000 cubic feet
-
120kW - For sauna rooms from 3001 to 5000 cubic feet
Features

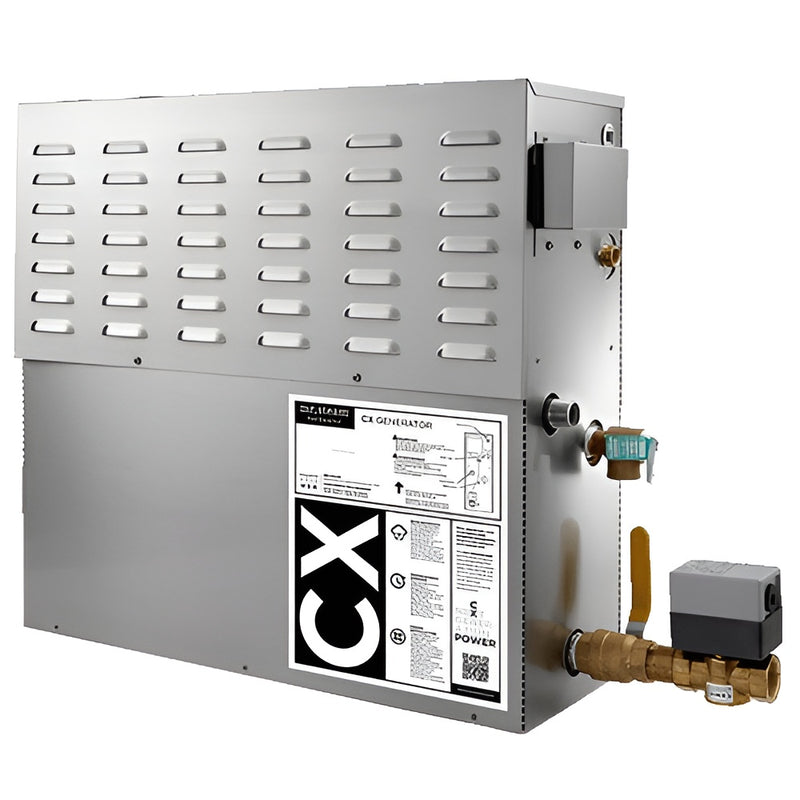

CX Generator
- Industrial-grade, large diameter, serviceable heating element
- Electronic water-level control system
- Stainless steel jacket prolongs life
- Quieter than a pressurized system
- Program to preheat the steam room at the start of each day
- Internal temperature shut-off to prevent low water conditions and integral high water cut-off

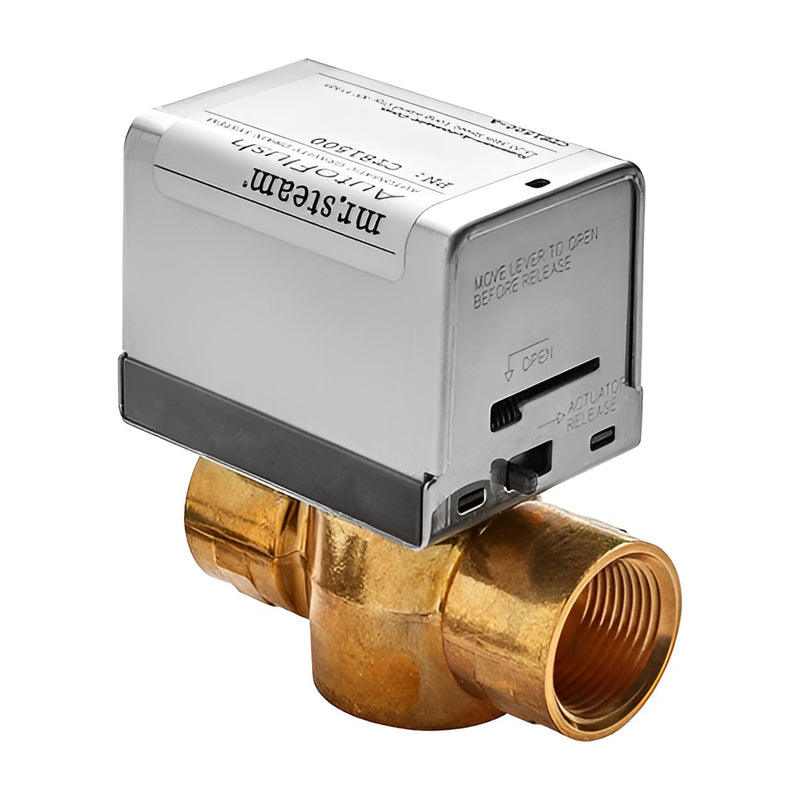

- Factory installed AutoFlush System flushes old water and impurities promoting a healthy life for generators
- Compact size offers more flexibility with room design and straightforward installation
- All units are wired and pre-tested before shipping to assure all parts of the generator are working perfectly
- Designed for commercial applications that require continuous or near continuous use so they are available to use all day
- Dimensions: 33.9"L x 7.9"W x 22"H (per generator including factory-installed auto flush system)

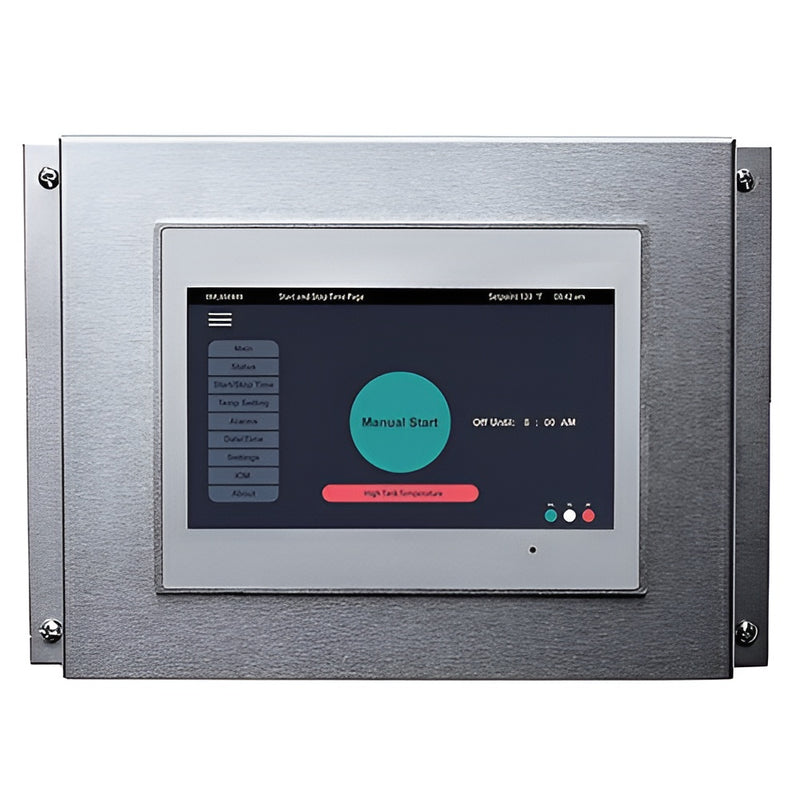

CX Control
- 7” color touch screen control with menu driven user interface
- Easily set on/off time and view system status while the unit is running
- Controls multiple CX Generators in series
- Dimensions: 7.1"L x 1.6"W x 5.3"H

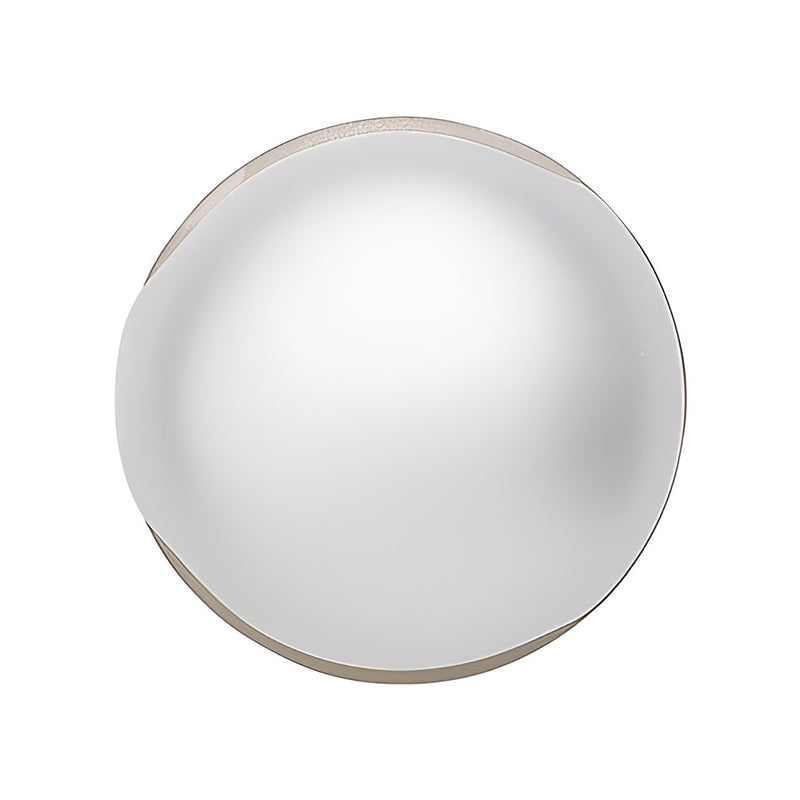

Commercial SteamHead
- Complete with polycarbonate Acrylic Shield
- Comes in a Polished Chrome finish
- No assembly of moving parts required
- Dimensions: 3.1”Diameter x 1.8”W

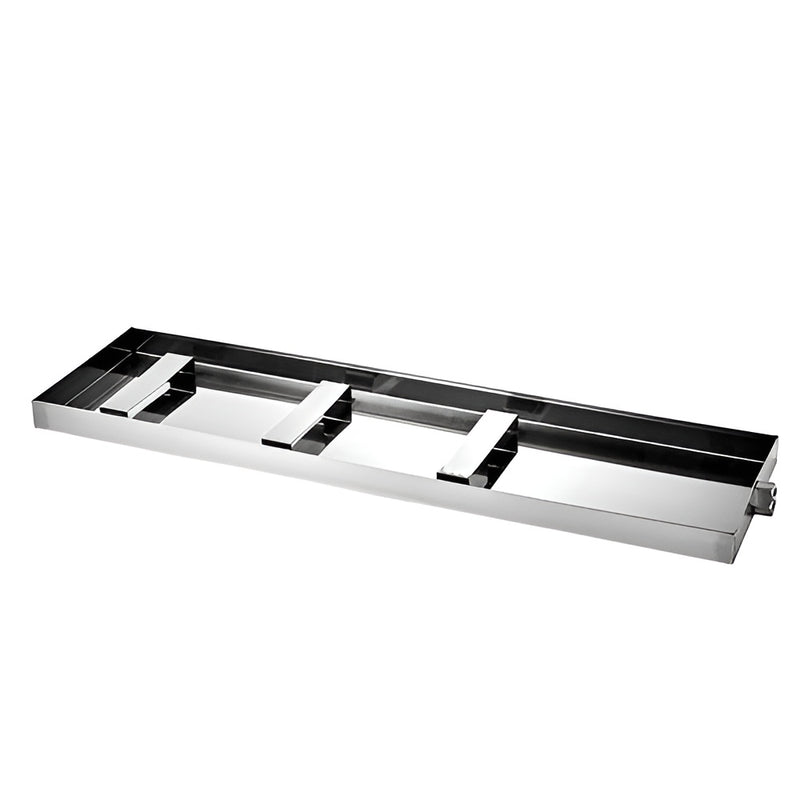

Condensation Pan
- Protects against potential water leaks
- Will trap and redirect the water to a predetermined area
- Goes on a solid level surface with steam generator placed inside
- Dimensions: 33"L x 1.5"W x 9"
Includes
CX Generator
- CX Generators

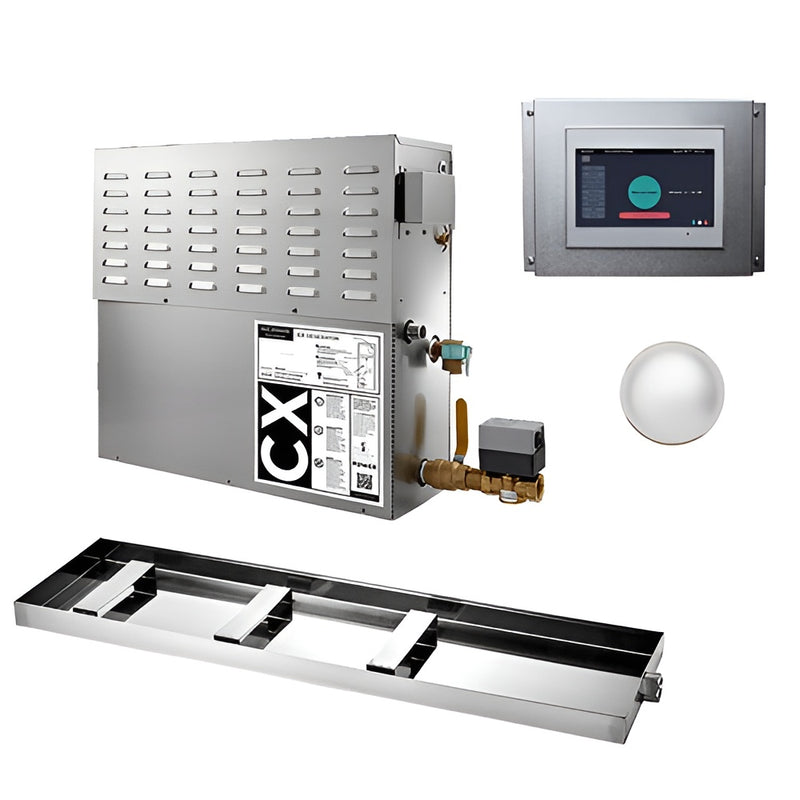

- CX1250

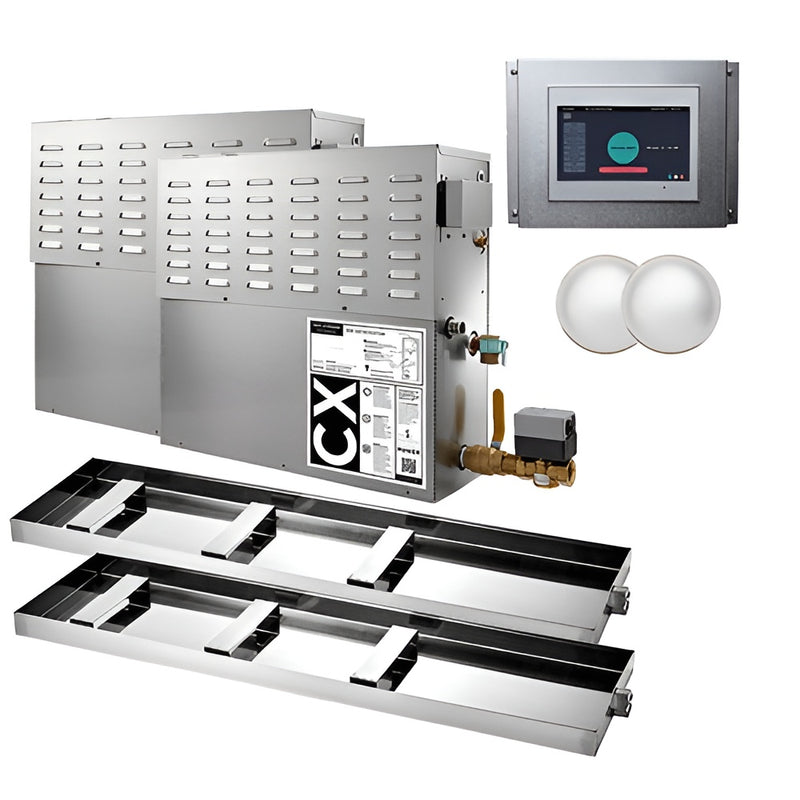

- CX1600-CX2500 (2)

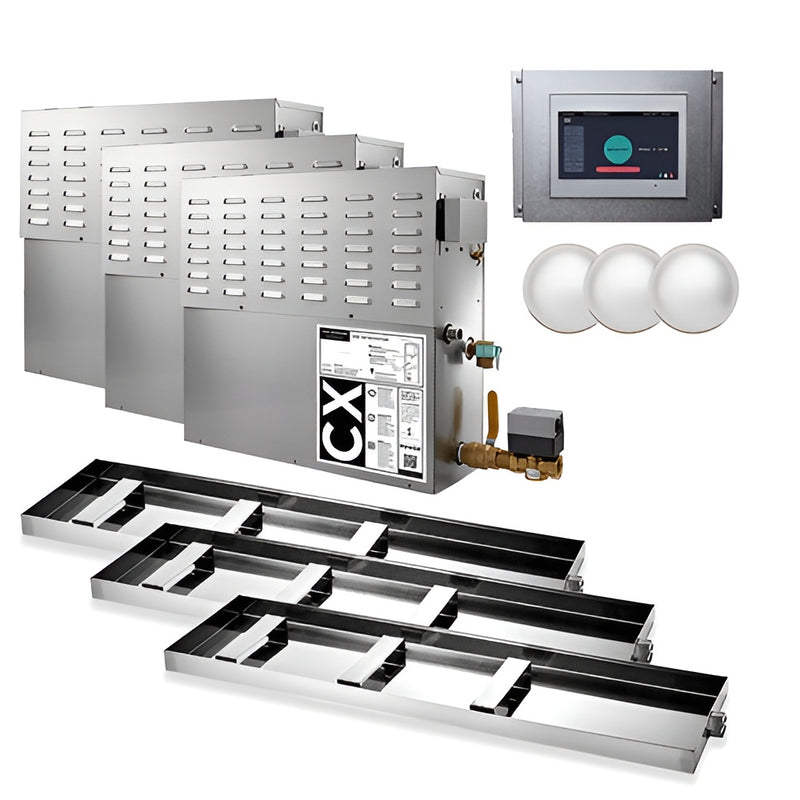

- CX3000 (3)

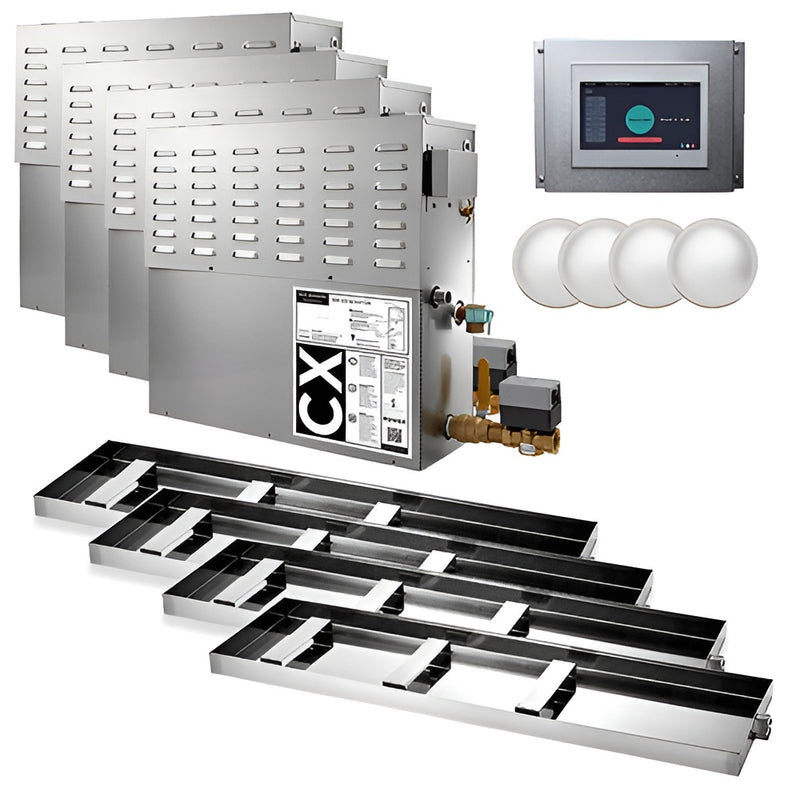

- CX5000 (4)
- Installation and Operation Manual
- 1-Year Limited Warranty
CX Control
- CX Control
- CX1250
- CX1600-CX2500
- CX3000
- CX5000
- 1-Year Limited Warranty
Commercial SteamHead
- Commercial SteamHeads
- CX1250
- CX1600-CX2500 (2)
- CX3000 (3)
- CX5000 (4)
- 1-Year Limited Warranty
Condensation Pan
- Condensation Pans
- CX1250
- CX1600-CX2500 (2)
- CX3000 (3)
- CX5000 (4)
- 1-Year Limited Warranty
Specifications
|
Model
|
CX1250-CX5000
|
|
Construction Material
|
Stainless Steel
|
|
Installation Type
|
Hardwired
|
|
Kilowatt Rating
|
30kW-120kW
|
|
Wattage
|
30000-120000
|
|
Water Supply Connection
|
3/8" NPT
|
|
Drain Connection
|
1" NPT
|
|
Safety Valve Connection
|
3/4" NPT
|
|
Minimum Cubic Feet
|
1001
|
|
Maximum Cubic Feet
|
5000
|
|
Product Dimensions
|
33.9"L x 7.9"W x 22"H (per generator including factory-installed auto flush system)
|
|
Shipping Weight
|
60 lbs (per generator)
|
|
CX Control
|
|
|
Product Dimensions
|
7.1"L x 1.9"W x 5.3"H
|
|
Commercial SteamHead
|
|
|
Product Dimensions
|
3.1"Diameter x 1.8"Depth
|
|
Condensation Pan
|
|
|
Product Dimensions
|
33"L x 1.5"W x 9"H
|
