Description

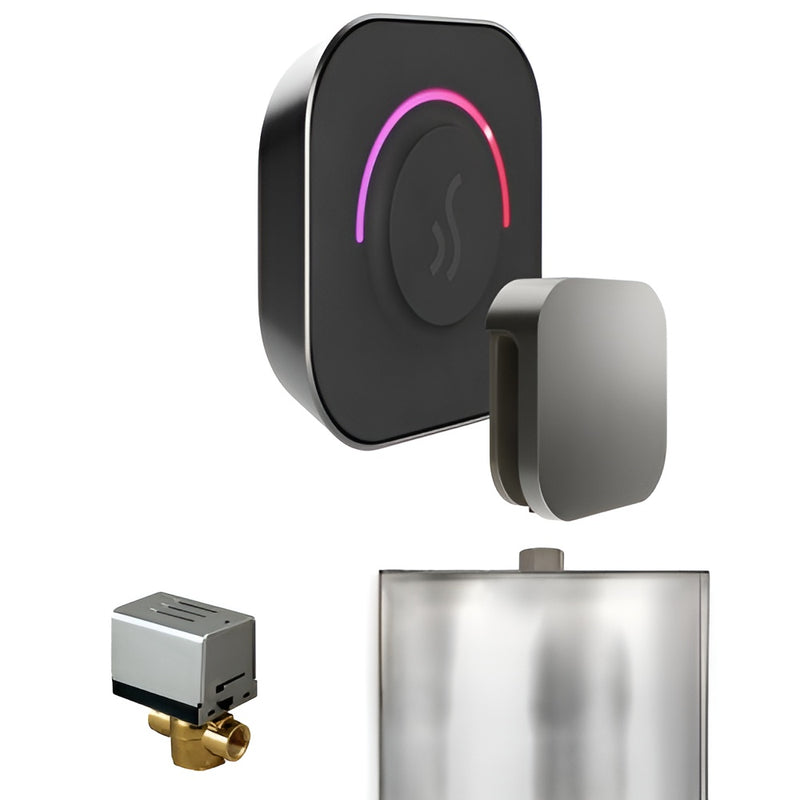

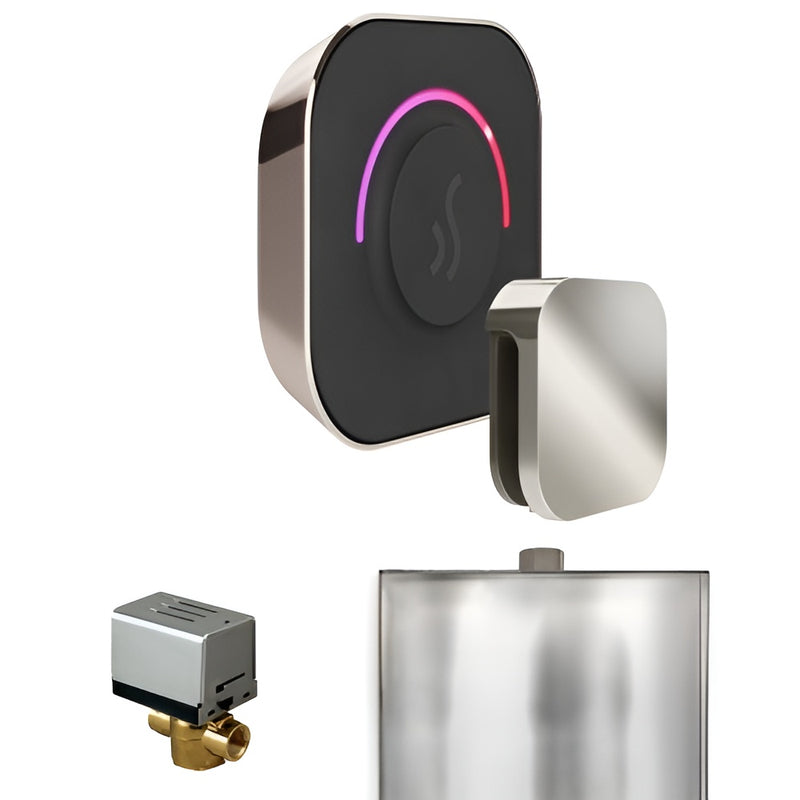

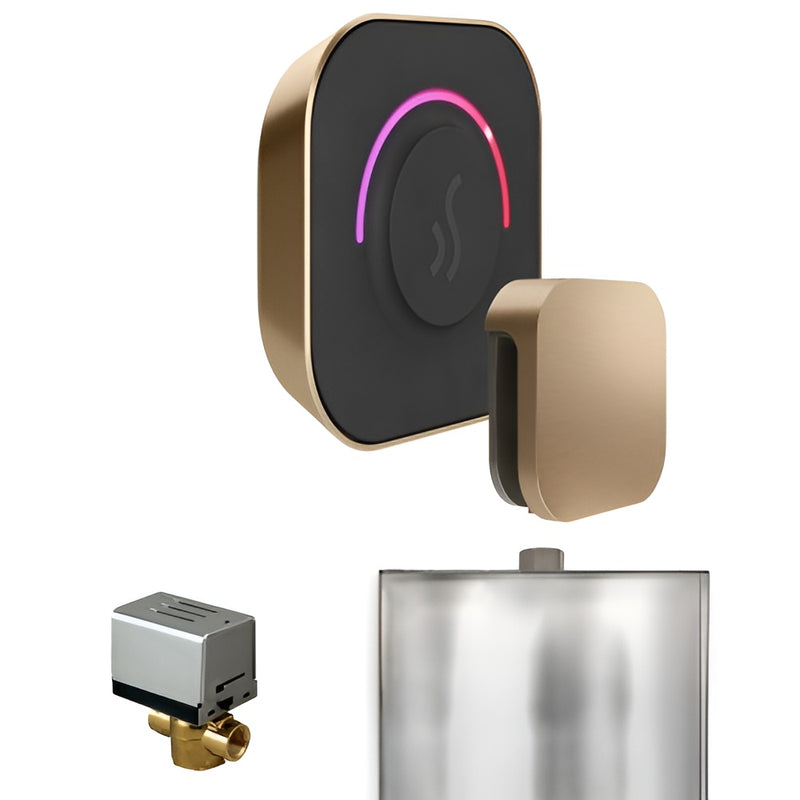

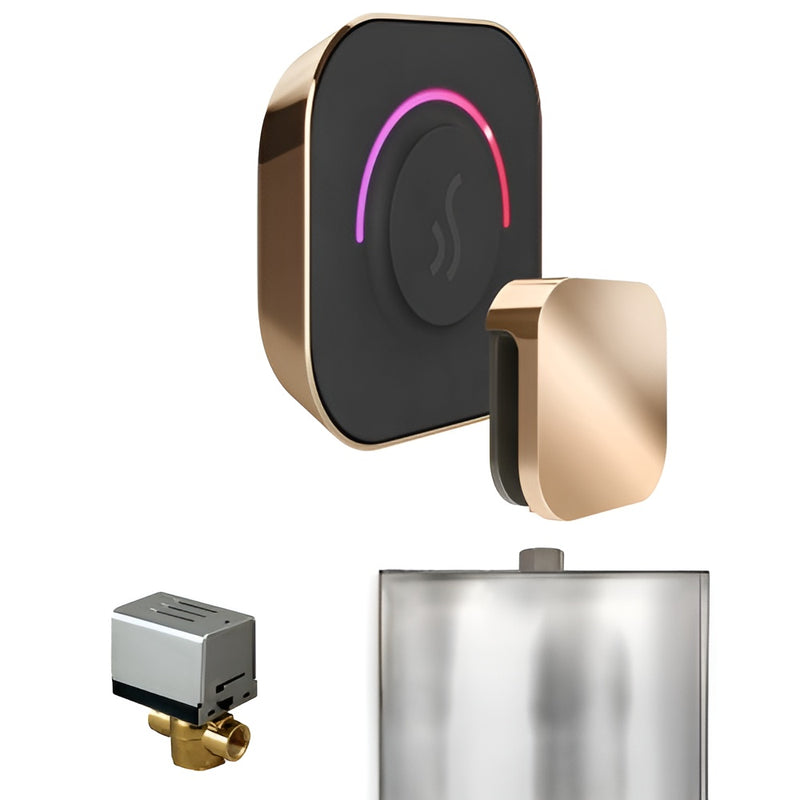

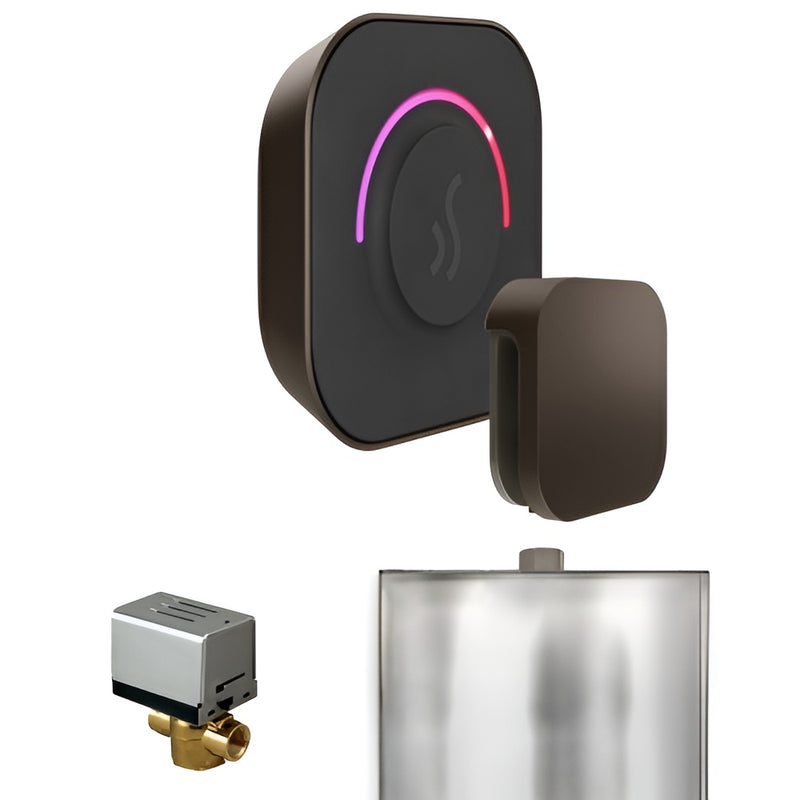

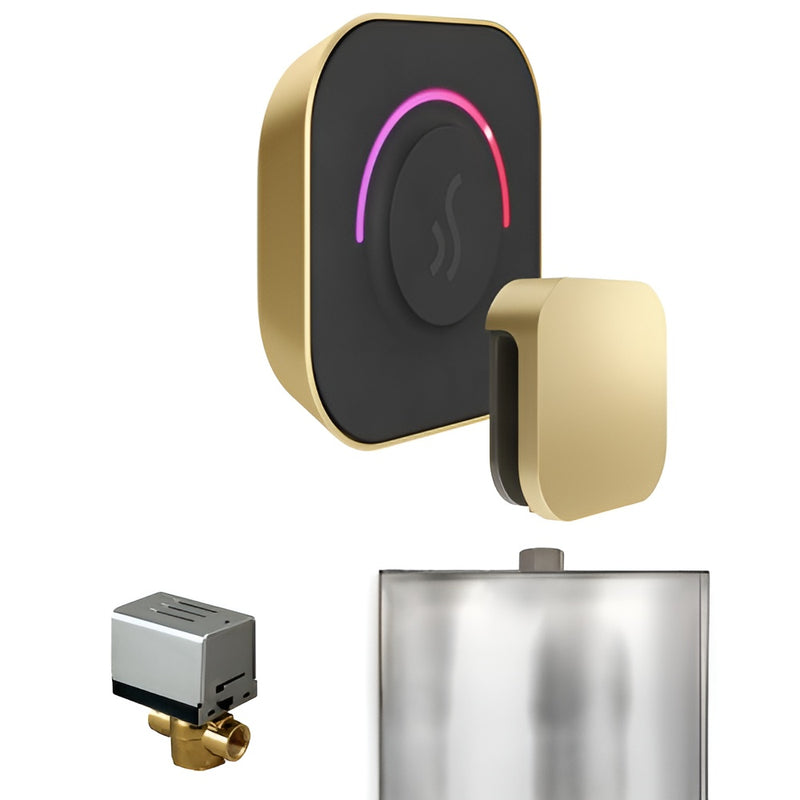

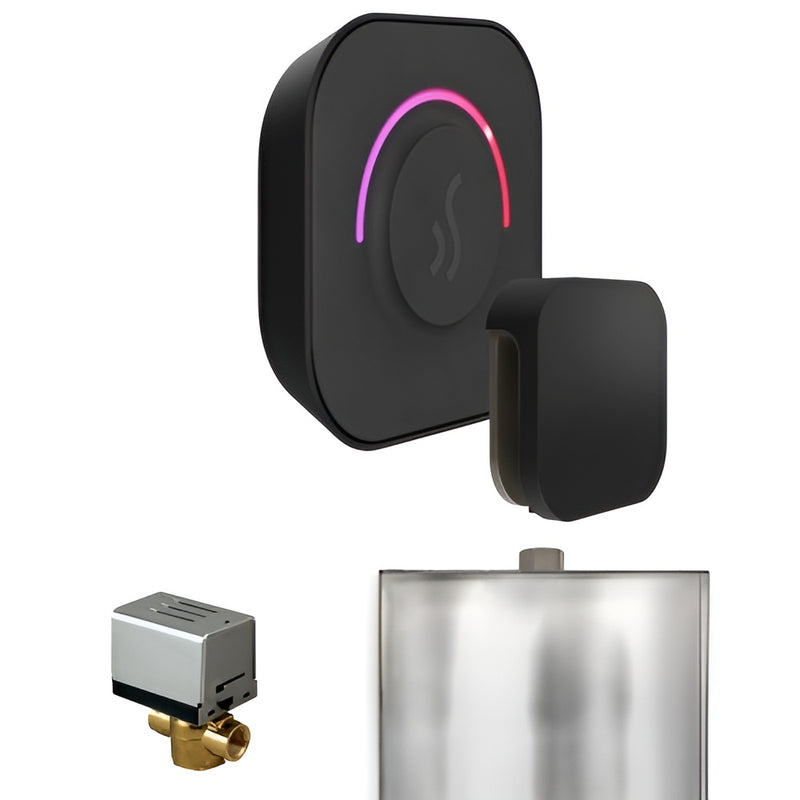

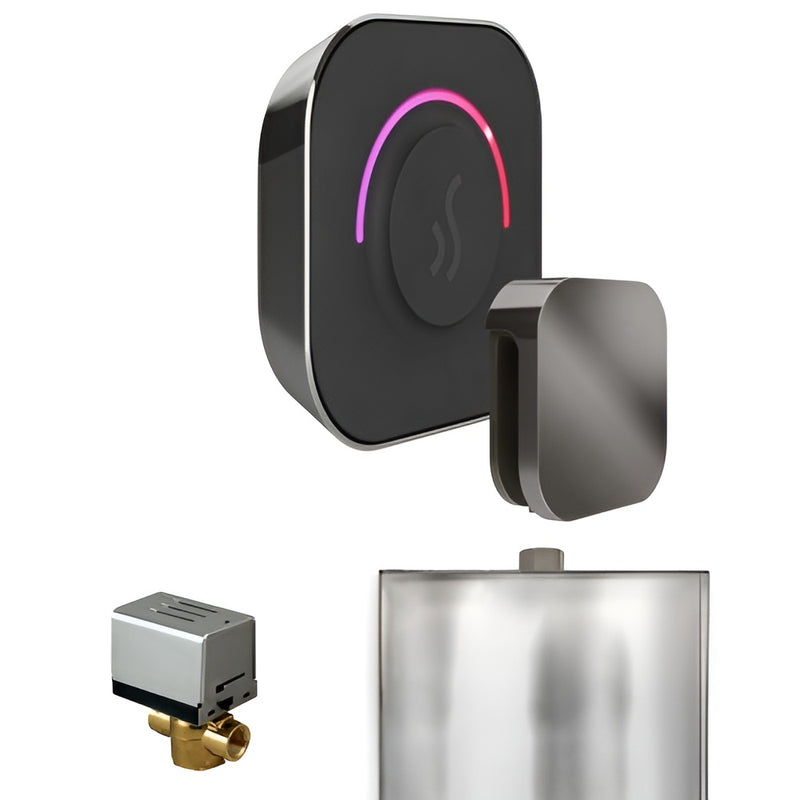

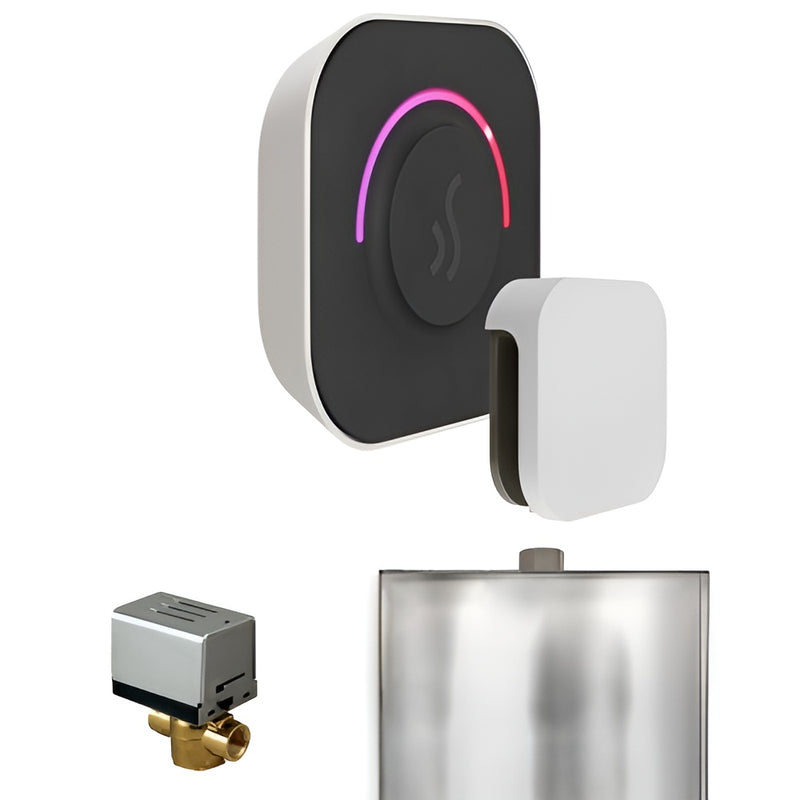

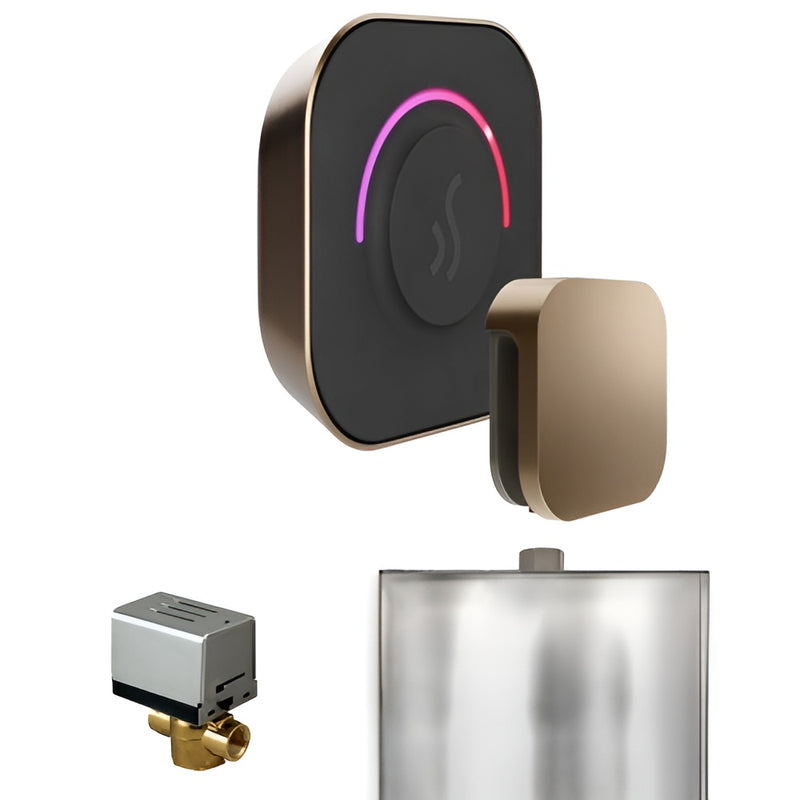

The Mr.Steam ButlerTouch Control Package brings pure fun and function to your steam shower experience with a simple touch or swipe of a finger. This complete collection includes the TempoTouch Control, Aroma SteamHead, AutoFlush System, and Condensation Pan—providing the essential components you need for a sleek, intuitive, and enjoyable steam environment.
Steam generator sold separately
Features
TempoTouch Control
- Capacitive touch control
- Simply press the button in the center to turn it on/off
- Pulses at start up and touch drive offers a tactile user experience
- Color gradient runs from blueish purple to radiant red when the system is on
- Slide finger along the arc or touch along the arc to adjust the temperature
- LED array lights up and a white dot illuminates at desired set temperature
- Temperature ranges from 80-120°F
- Face is made of rubber
- Dimensions: 3"W (8 cm) x 0.8"D (2 cm) x 3"H (8 cm)
- Limited 2-year warranty
Aroma SteamHead
- Modern design
- Even distribution of steam
- Remains cool to the touch
- Has an oil reservoir at the top for essential oils
- No assembly of moving parts required
- Dimensions: 3"W (8 cm) x 1"D (3 cm) x 3"H (8 cm)
- Limited 2-year warranty
AutoFlush System
- Automatic self-cleaning system that promotes a long and healthy life for steam generators
- Flushes old water and impurities after every steam shower
- Quietly flushes through a 1/2" electronically-activated valve
- Simple plug and play installation
- Dimensions: 3.3"W (8 cm) x 2.5"D (6 cm) x 4.3"H (11 cm)
- Limited 2-year warranty
Condensation Pan
- Protects against potential water leaks
- Will trap and redirect the water to a predetermined area
- Goes on a solid level surface beneath the steam generator
- Built-in brackets raise the steam generator above the bottom of the pan
- Dimensions: 25"W (64 cm) x 9"D (23 cm) x 1.5"H (4 cm)
- Limited 2-year warranty
Includes
TempoTouch Control
- Control
- 30 ft Control Cable
- Tube of Silicone Sealant
- Installation and Operation Manual
- 2-Year Limited Warranty
Aroma SteamHead
- SteamHead
- 2-Year Limited Warranty
AutoFlush System
- AutoFlush Valve with Cord
- 2-Year Limited Warranty
Condensation Pan
- Condensation Pan
- 2-Year Limited Warranty
Specifications
|
Model
|
BUTLERTOUCH PKG
|
|
Model
|
TEMPOTOUCH
|
|
Construction Material
|
Plastic, Metal, Electronics
|
|
Installation Type
|
Hardwired
|
|
Display
|
LED Array
|
|
Interface
|
Capacitive Touch
|
|
Width
|
3" (8 cm)
|
|
Depth
|
0.8" (2 cm)
|
|
Height
|
3" (8 cm)
|
|
Weight
|
5 lbs (2 kg)
|
|
Model
|
STEAMHEAD 104518
|
|
Construction Material
|
Brass
|
|
SteamHead Connection
|
3/4" NPT
|
|
Width
|
3" (8 cm)
|
|
Depth
|
1" (3 cm)
|
|
Height
|
3" (8 cm)
|
|
Weight
|
0.7 lbs (1 kg)
|
|
Model
|
AUTOFLUSH MS81500E
|
|
Construction Material
|
Aluminum and Brass
|
|
Drain Valve
|
1/2" NPT
|
|
Width
|
3.3" (8 cm)
|
|
Depth
|
2.5" (6 cm)
|
|
Height
|
4.3" (11 cm)
|
|
Weight
|
2.3 lbs (1 kg)
|
|
Model
|
CONDENSATION PAN 103867
|
|
Construction Material
|
Stainless Steel
|
|
Drain Fitting
|
3/4" NPT
|
|
Width
|
25" (64 cm)
|
|
Depth
|
9" (23 cm)
|
|
Height
|
1.5" (4 cm)
|
|
Weight
|
3 lbs (1 kg)
|
