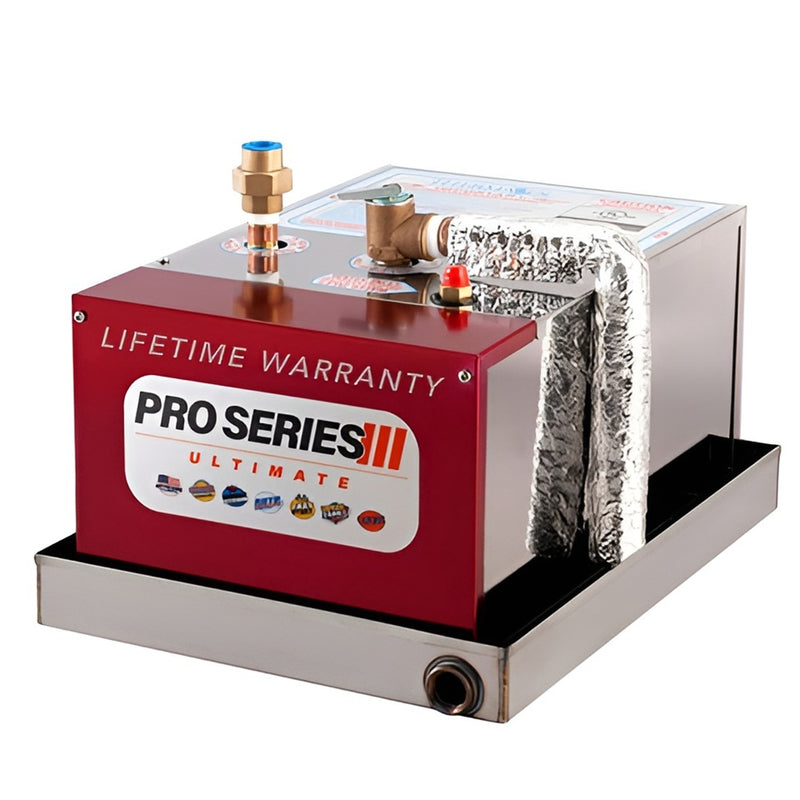

ThermaSol PROIII-1200

PRO Series II Ultimate Steam Shower Generator, 24kW

SKU PROIII-1200
Original price $8,270.00
Original price $8,270.00 - Original price $8,270.00
Original price $8,270.00
Current price $5,789.00
$5,789.00 - $5,789.00
Current price $5,789.00

Free shipping. No sales tax (except FL)

Description

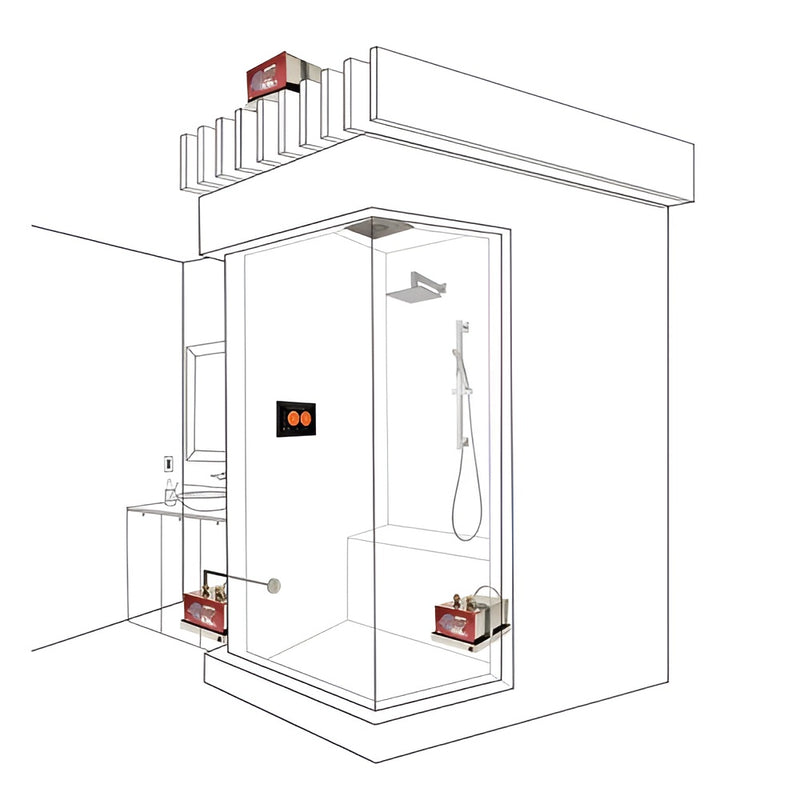

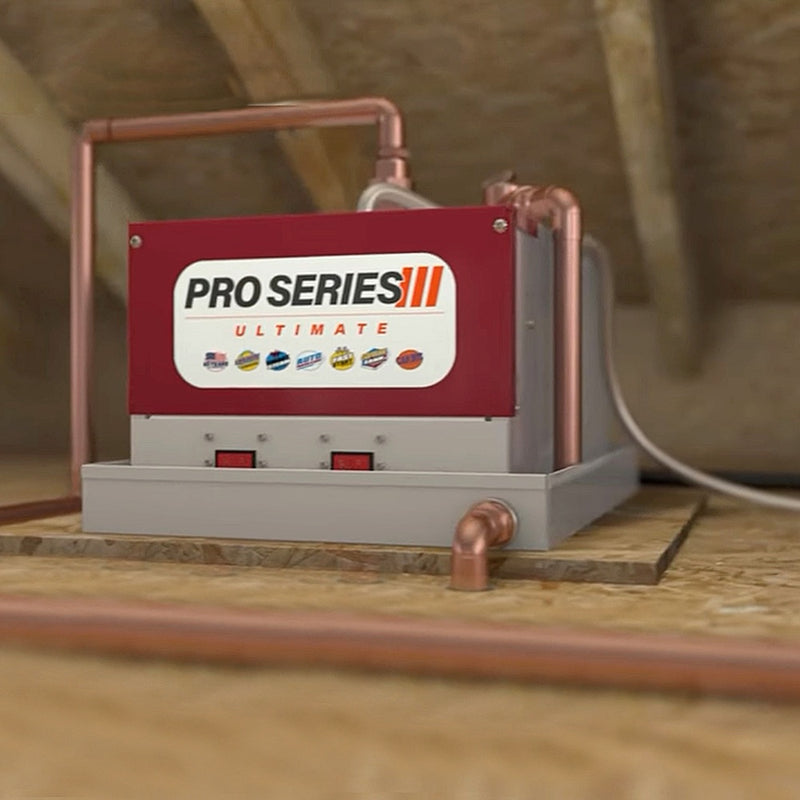

The ThermaSol PROIII-1200 is a 24kW steam generator built for residential steam rooms spanning 751–1200 adjusted cubic feet. Operating on 208V–240V single-phase power, it delivers consistent steam output through Smart Steam temperature control and Fast Start rapid heat-up technology. The split-tank design separates heating from water feed, extending equipment life, while the PowerFlush pressurized cleaning system prevents sediment accumulation. Stainless-steel construction and professional-grade heating elements ensure durability. Advanced CAN Bus technology enables reliable two-way communication with compatible controls—Thermatouch, Signatouch, Microtouch, Signature Control, Easy Start, Wellness Package, and Digital Shower Package. The unit supports popular accessories including Serenity, Light, Sound, and Rainhead systems, and can be installed up to 50 feet from your enclosure in closets, vanities, attics, or basements. UL and CSA listed with a limited lifetime warranty and full serviceability.

Features

  • Constant steam flow
  • Constant steam rate
  • No steam lag
  • No steam burst
  • Smart Steam Technology (patented) - eliminates temperature fluctuations
  • FastStart Technology (exclusive) - steam in seconds, not minutes
  • PowerFlush Technology (exclusive) - pressurized inner tank system to remove sediment
  • Works with HydroVive and Serenity systems
  • Two-way digital CAN-bus Technology (exclusive)
  • Split Tank longevity through design
  • Includes stainless steel drain pan
  • Pre-plumbed safety relief valve
  • 1/2" union to connect to steam line
  • Braided stainless steel water connector
  • 240V/1PH operation
  • For steam rooms 751 to 1200 adj. cu. ft.
  • Superior heating elements-Incoloy low watt density
  • Stainless Steel construction
  • Designed, engineered, and crafted in the U.S.A
  • Dimensions: 18" L x 23"W x 14" H
  • Lifetime Warranty

Includes

  • 24kW Steam generator
  • Stainless steel drain pan
  • 3/8" braided stainless-steel hose & fitting
  • In-line water screen kit
  • Pre-plumbed safety relief valve
  • Steamhead housing and cable kit
  • 50' CAN-bus cable for the controller
  • Installation instructions
  • Static cling warning label
  • Warranty

Specifications

Model

PROIII-1200

Kilowatt Rating

24 kW

Maximum Cubic Feet

1200 ACF

Amperage

110

Heater Weight

48 lbs

Water Inlet

3/8" Compression

Steam Outlet

1/2" NPT

Drain Pan

3/4" NPT

Safety Valve

Pre-Plumbed

Electrical Connection

Hardwired

Width

18"

Depth

23"

Height

14"

Technical

Installation Manual

Installation Diagram

Spec Sheet
