Description

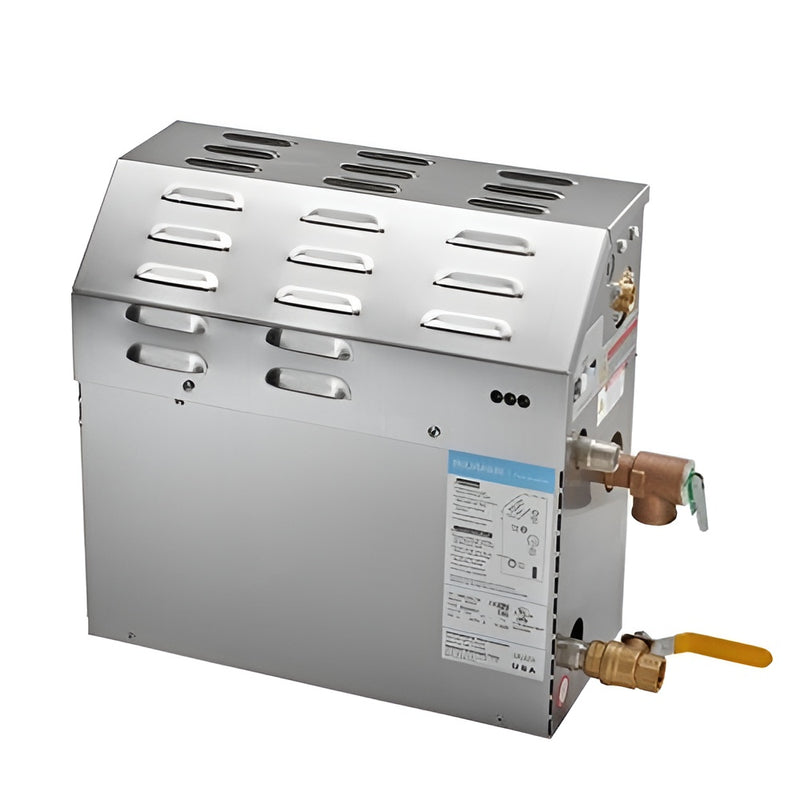

The Mr.Steam MS Steam Shower Generator is engineered to deliver years of clean, quiet, and efficient performance, providing consistent steam output for small‑sized rooms. Built with the latest steam‑shower technology and an advanced microprocessor operating system, it ensures smooth, reliable operation every time you step into your steam environment.
Constructed from corrosion‑resistant stainless steel, the MS Generator features industrial‑grade heating elements, durable electronic components, LED diagnostic indicators, and a precision temperature probe for accurate control. Its compact design allows for flexible, out‑of‑sight installation in closets, cabinets, insulated attics, or beneath a sealed bench.
Designed with efficiency in mind, the MS uses less than 2 gallons of water per session—far less than the 40 gallons typically required for a traditional bath—delivering a luxurious steam experience with minimal resource use. For even faster startup, the optional Express Steam feature includes a built‑in thermostat that brings steam online quickly and maintains optimal water temperature for a ready‑when‑you‑are experience.
Features
- Quiet and efficient
- 240V/1PH operation
- For small sized rooms
- Advanced microprocessor operating system
- Corrosion-resistant stainless steel tank
- Industrial-grade heating elements
- LED light indicators for troubleshooting
- Durable electronic components
- Low voltage safety control circuits
- Compact size to fit in small areas
- Optional Express Steam starts steam quick and maintains water temperature
- Dimensions: 14.5"W (37 cm) × 6.8"D (17 cm) x 14.8"H (38 cm)
- Limited lifetime warranty
Includes
- Steam Generator
- Installation and Operation Manual
- Lifetime Limited Warranty
Specifications
|
Model
|
MS-R
|
|
Construction Material
|
Stainless Steel
|
|
Installation Type
|
Hardwired
|
|
Room Size
|
0-257 cu. ft.
|
|
Kilowatt Rating
|
5-9kW
|
|
Voltage
|
240
|
|
Phase
|
1
|
|
Drain Connection
|
1/2" NPT
|
|
Water Supply Connection
|
3/8" NPT
|
|
SteamHead Connection
|
3/4" NPT
|
|
Width
|
14.5" (37 cm)
|
|
Depth
|
6.8" (17 cm)
|
|
Height
|
14.8" (38 cm)
|
|
Weight
|
25 lbs (11 kg)
|
Technical
Installation and Operation Manual
Spec Sheet
Warranty
