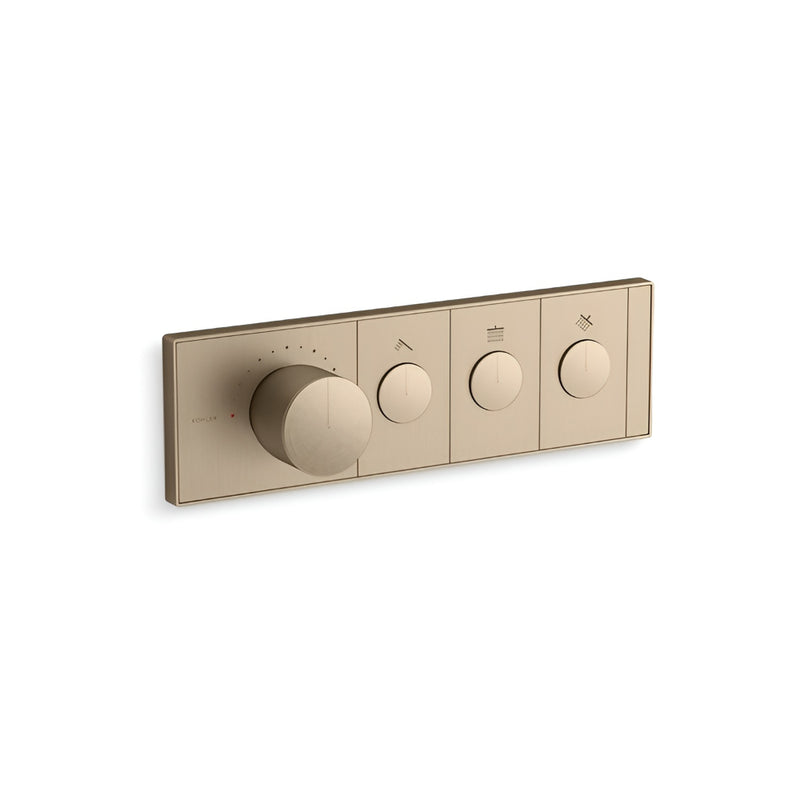

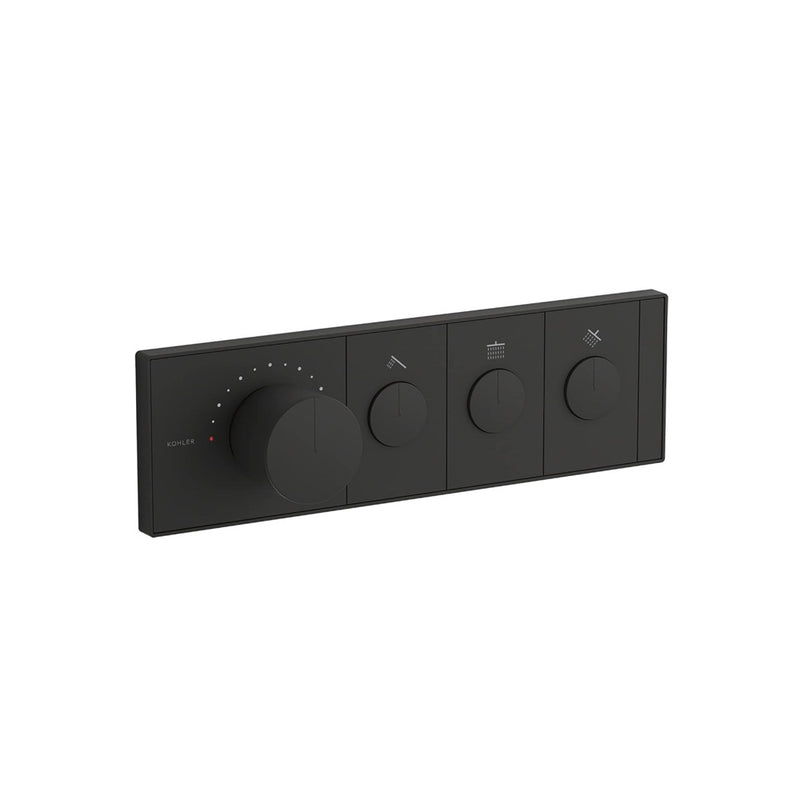

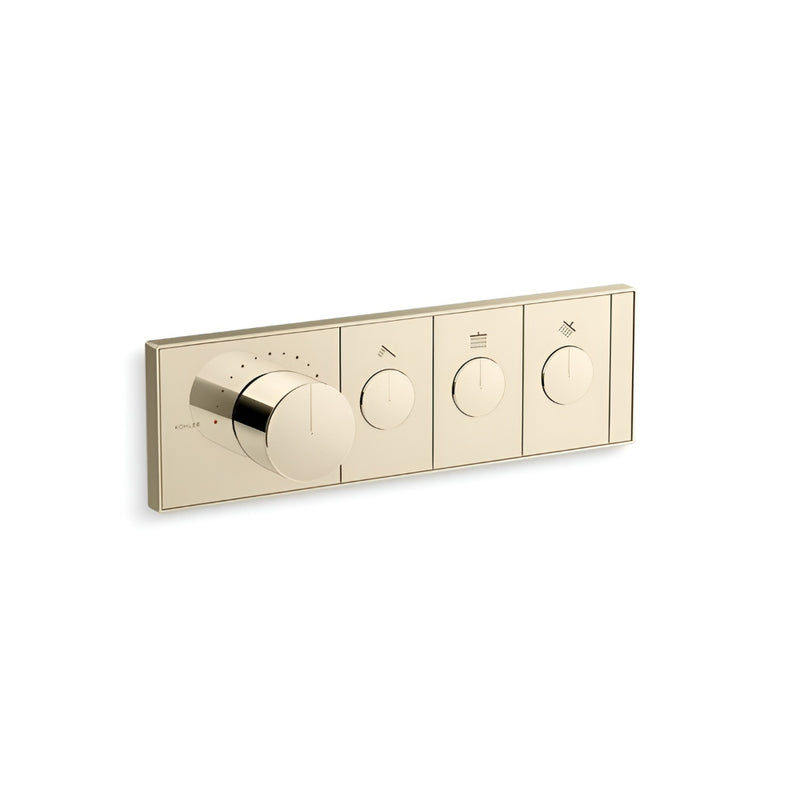

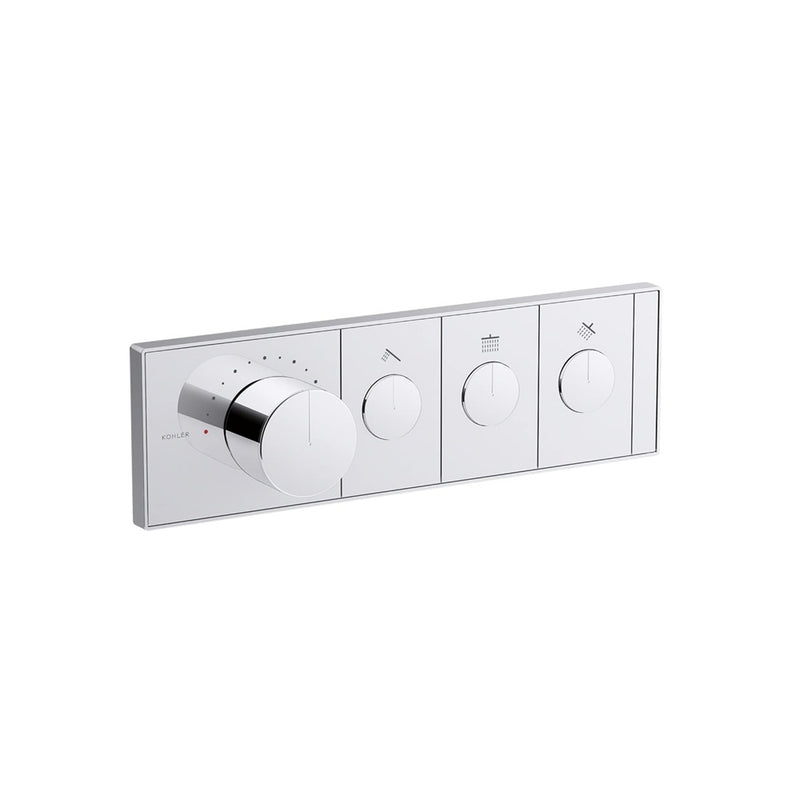

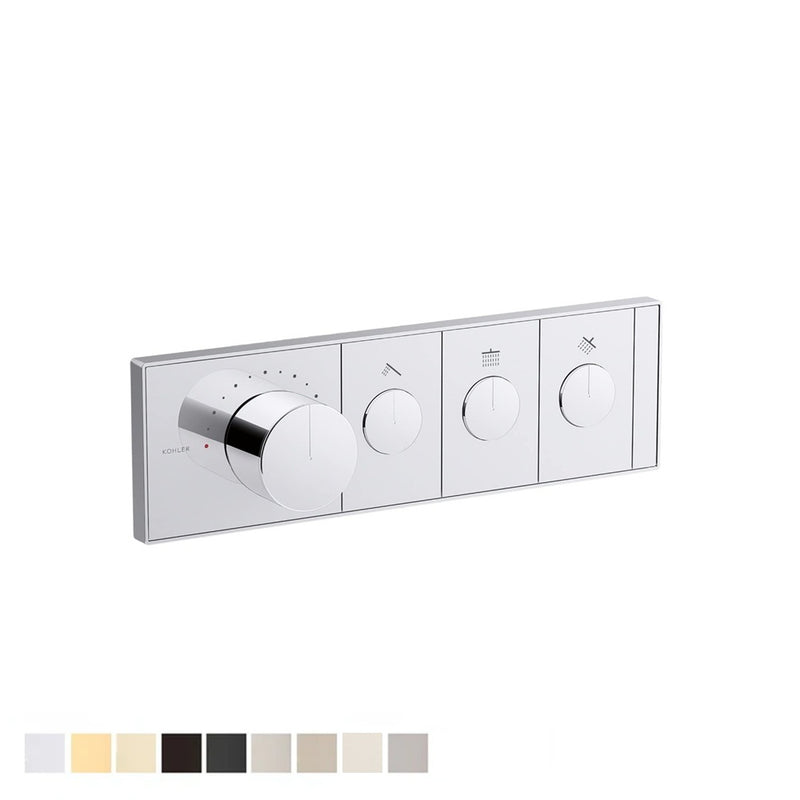

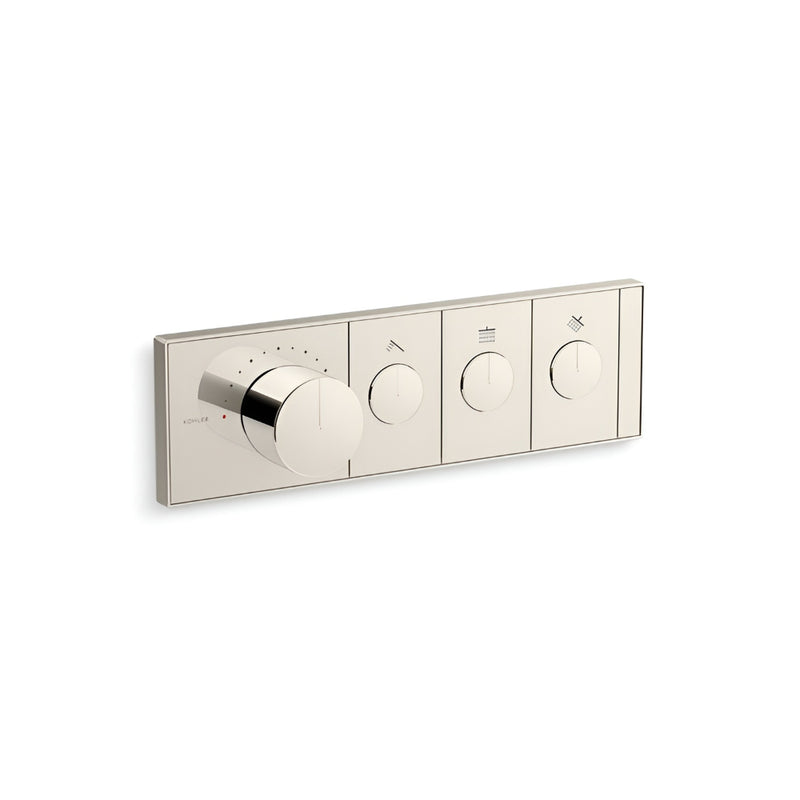

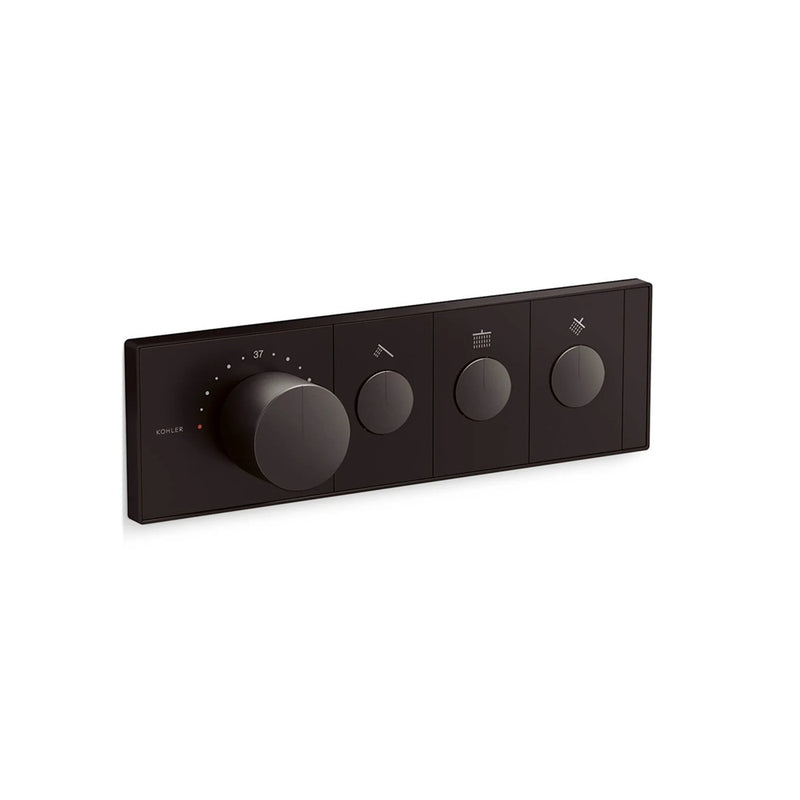

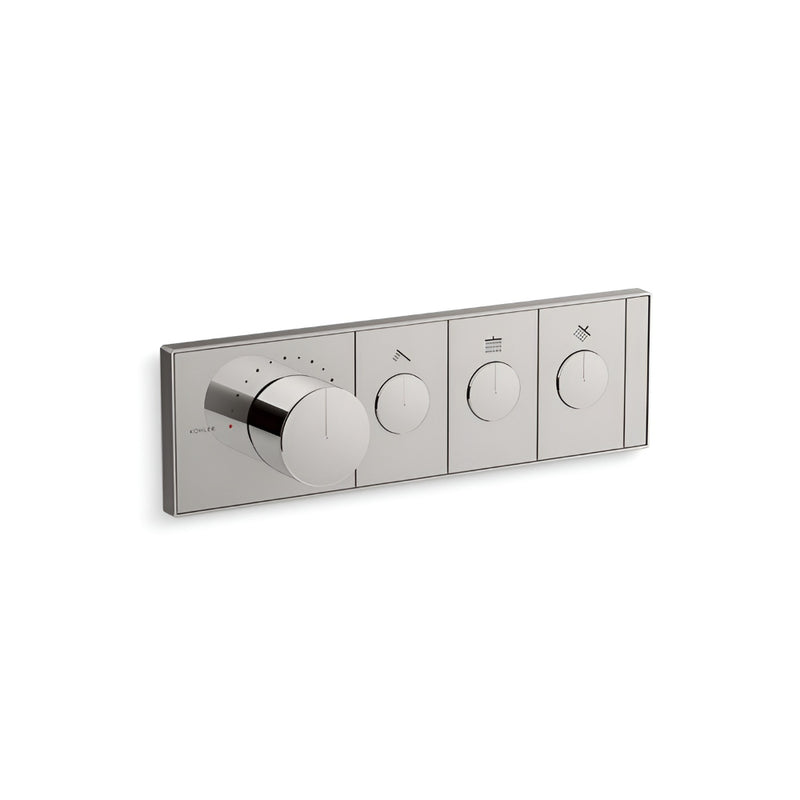

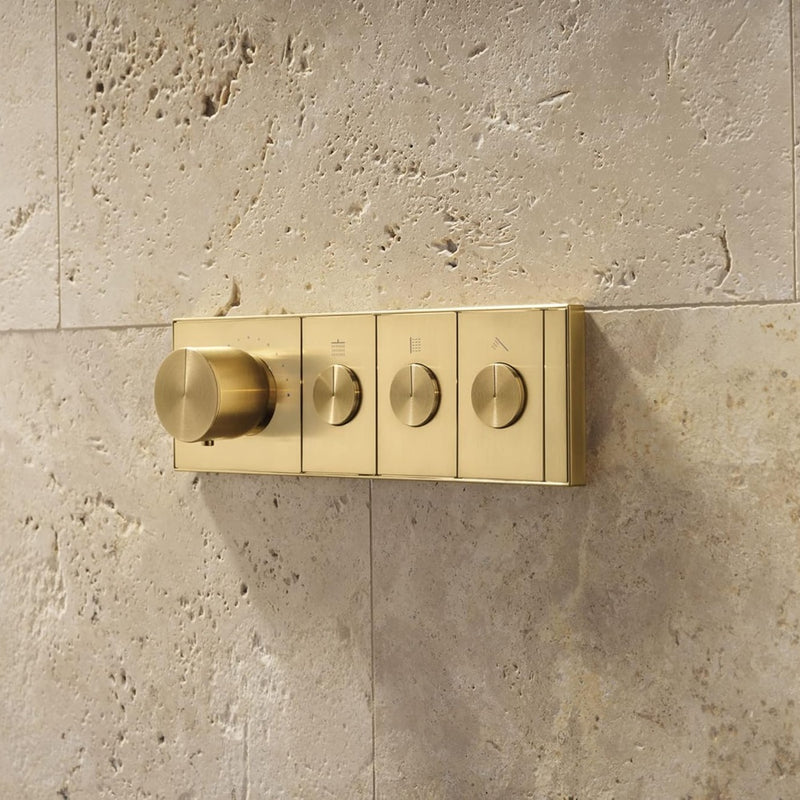

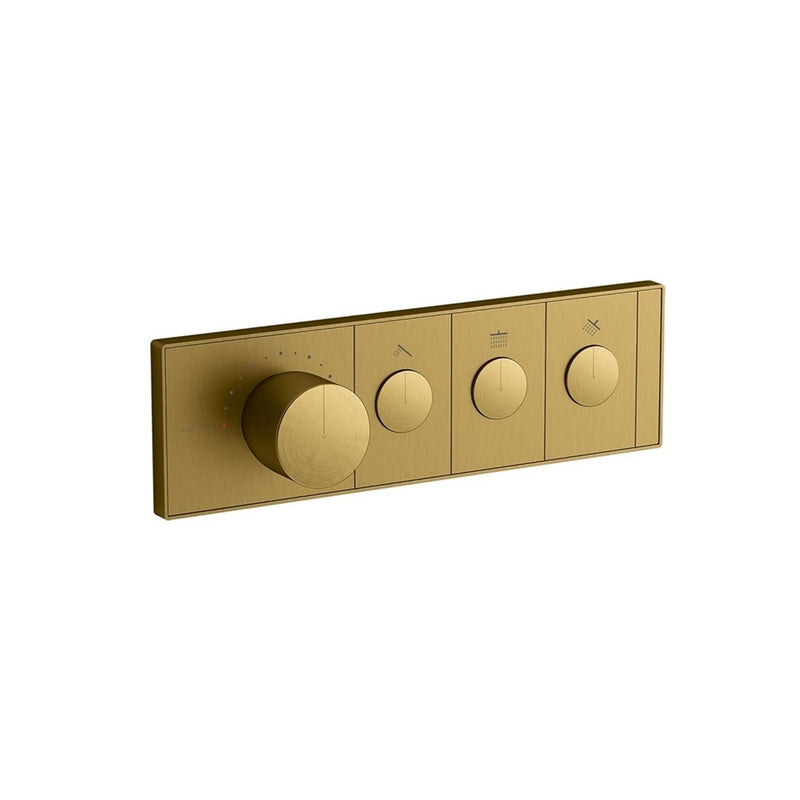

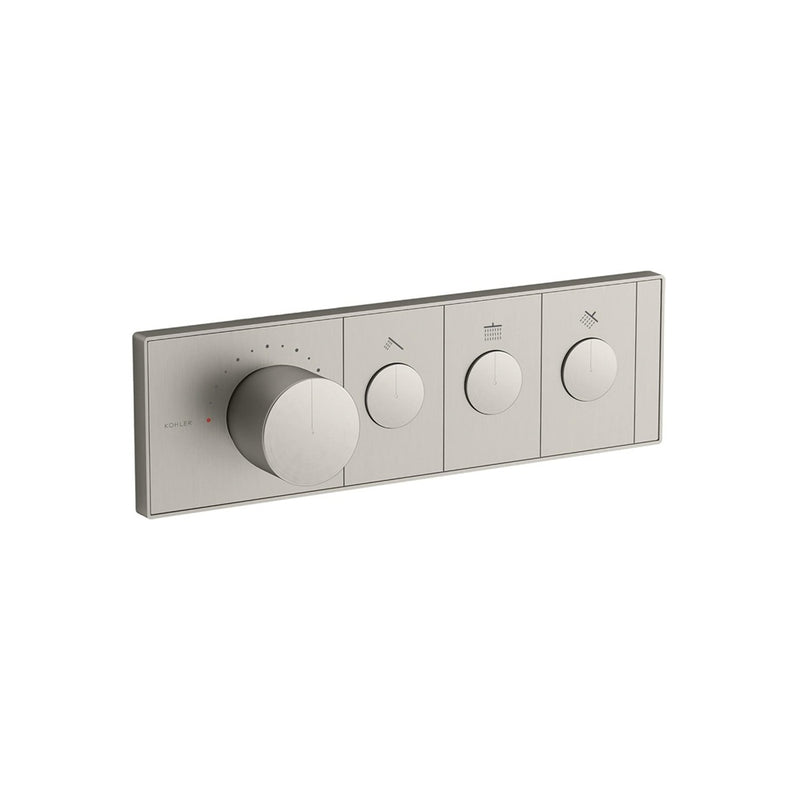

Kohler K-26347-9 Anthem Three-Outlet Recessed Mechanical Thermostatic Valve Control

Description

Engineered for precision temperature management, the Kohler Anthem Three-Outlet Recessed Mechanical Thermostatic Valve delivers reliable thermal stability across multiple shower zones. This advanced valve system features three independently controlled ports, enabling seamless operation of up to three distinct shower outlets from a single control point. Pre-assembled construction streamlines installation, while the integrated design pairs seamlessly with Kohler's recessed pushbutton trim panels for a refined aesthetic. Ideal for complex shower configurations demanding individual outlet regulation and consistent water temperature performance.

Required for the Anthem Three-Outlet Recessed Mechanical Thermostatic Valve Control, sold separately.

Features

• High-flow thermostatic mixing valve
• Mechanically controlled thermostatic mixing valve maintains the outlet temperature
• Service stops with integral filters
• Antiscald protection
• Integrated adjustable high-temperature limit stop controls the maximum water temperature
• Adjustable comfort setting (preset at approximately 104°F)
• Maximum flow rate of 8 gpm (30.3 lpm) at 45 psi (3.1 bar) with maximum flow rate of 7 gpm (26.5 lpm) from one outlet
• Optional flow restrictor is included to limit total flow to 1.75 gpm (6.6 lpm) for installations where water conservation or CEC compliance is desired
• 3/4" NPT female inlet and 1/2" NPT female outlet connections
• Dimensions: 13.9"W (35 cm) x 4.9"D (12 cm) x 6.1"H (16 cm)
• Limited lifetime warranty


Includes

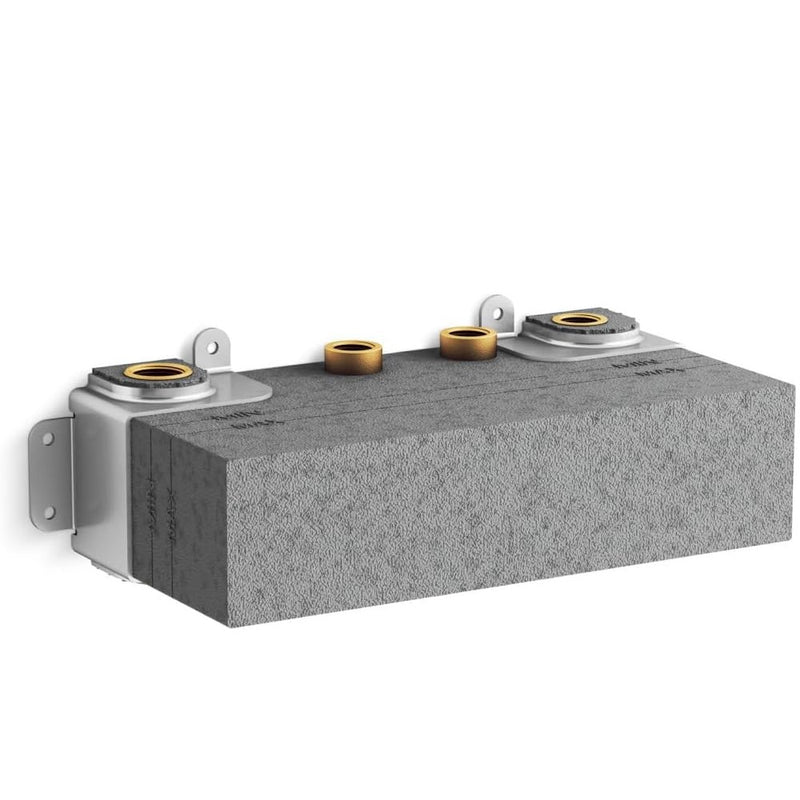

• Thermostatic Valve
• Flow Restrictor
• Lifetime Limited Warranty
