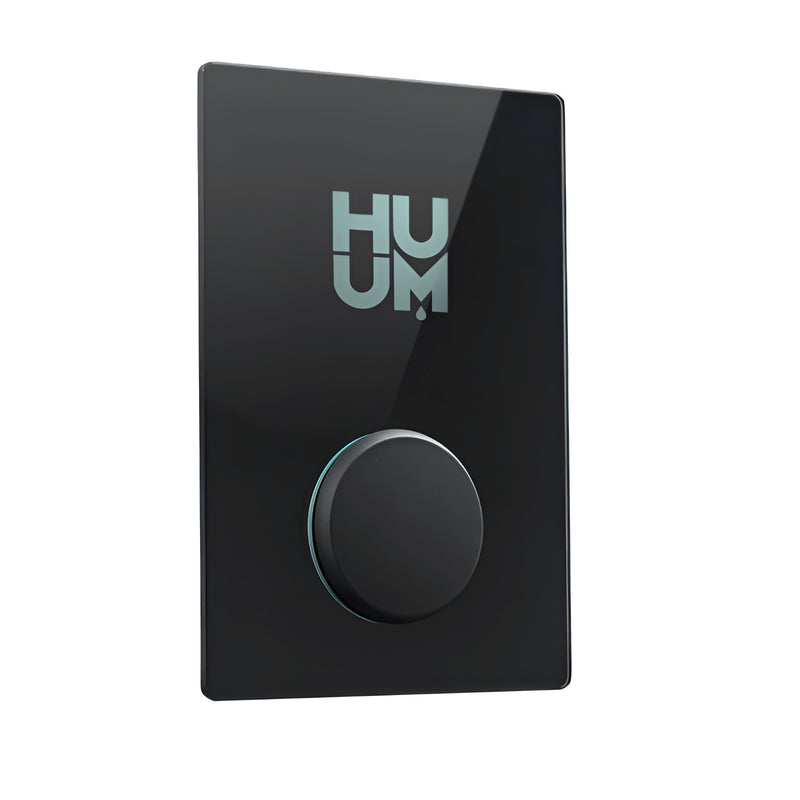

HUUM UKU GLASS

Description

UKU Wi-Fi Glass sauna controller makes sauna heating convenient and comfortable. With UKU you can heat your sauna on the spot or do it from your phone through HUUM mobile app. UKU comes with several safety and extra features for a pleasant sauna experience. HUUM UKU Glass is designed for use with sauna heaters up to 9kW (For HUUM sauna heaters over 11kw and up to 18kW, an UKU Ext Box is required.)

Sauna heater sold separately

Features

• Elegant Black Glass control display panel

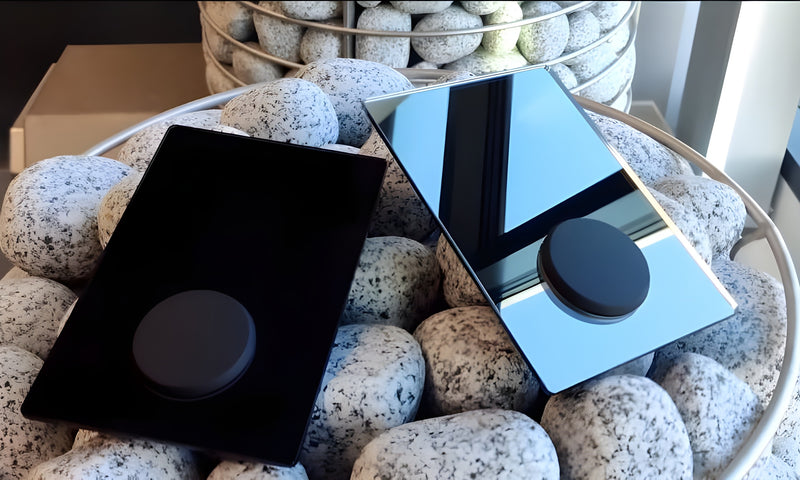

• Display panel can be recessed or surface-mounted
• For heaters up to11kW (over 11kW up to 18kW requires an UKU extension box)
• Settable on/off, time, temperature, and delay
• Settable temperature range of 122-230F
• Delayed start-up to 48hrs in advance

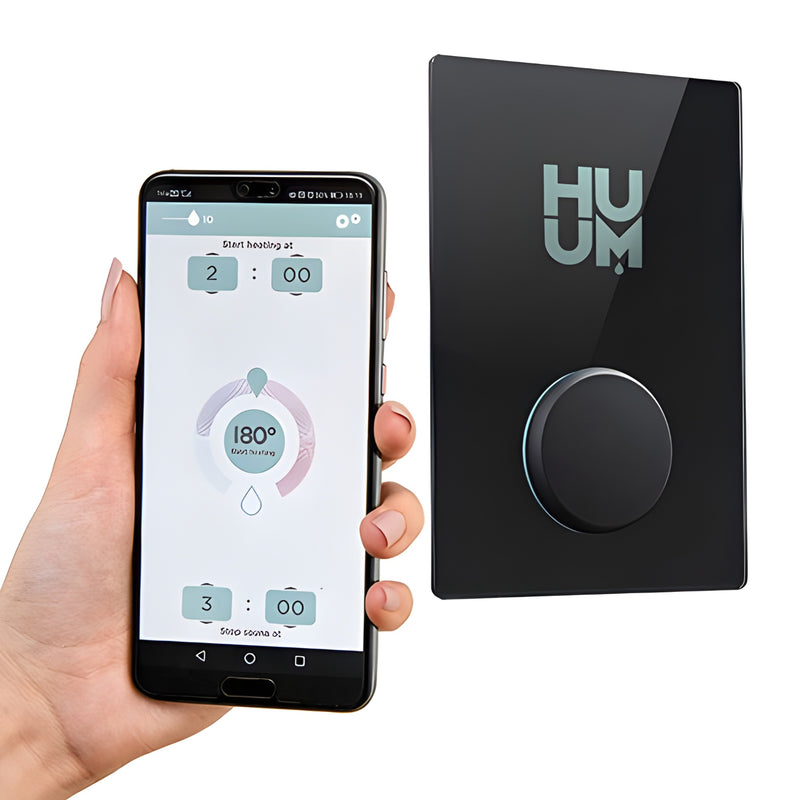

• Built-in Wi-Fi interface for HUUM mobile app
• 8 Language options: English, German, Russian, Italian, Finnish, Polish, and French
• Unlimited number of users
• Notification when set temperature is reached
• Inside/outside sauna room installation
• Optional smart heating setting
• Displays set temperature and room temperature
• Temperature sensor
• Door sensor to keep the heat inside the room
• Remotely located main control module
• Connects to lights and ventilation or steamer (not included)
• Overheat protection
• Child safety lock
• Limited 3-year residential warranty and limited 1-year commercial warranty

Includes

• Glass control display panel, 3.5" x 5.11" x 0.72" (0.54" can be recessed into the wall)
• Main control module, 5.59" x 3.54" x 2.28"
• Temperature sensor
• Door sensor
• Control display panel cable, 9.84', 12AWG
• Temperature sensor cable, 16.4', 14AWG
• Door sensor cable, 16.4', 14AWG
• Installation and operation manual
• 3-Year Limited Residential Warranty and 1-Year Limited Commercial Warranty

Specifications

Technical

Installation and Operation Manual

HUUM UKU Installation Diagram

UKU Glass/Mirror Installation Diagram

Warranty

Installation Video
