Description

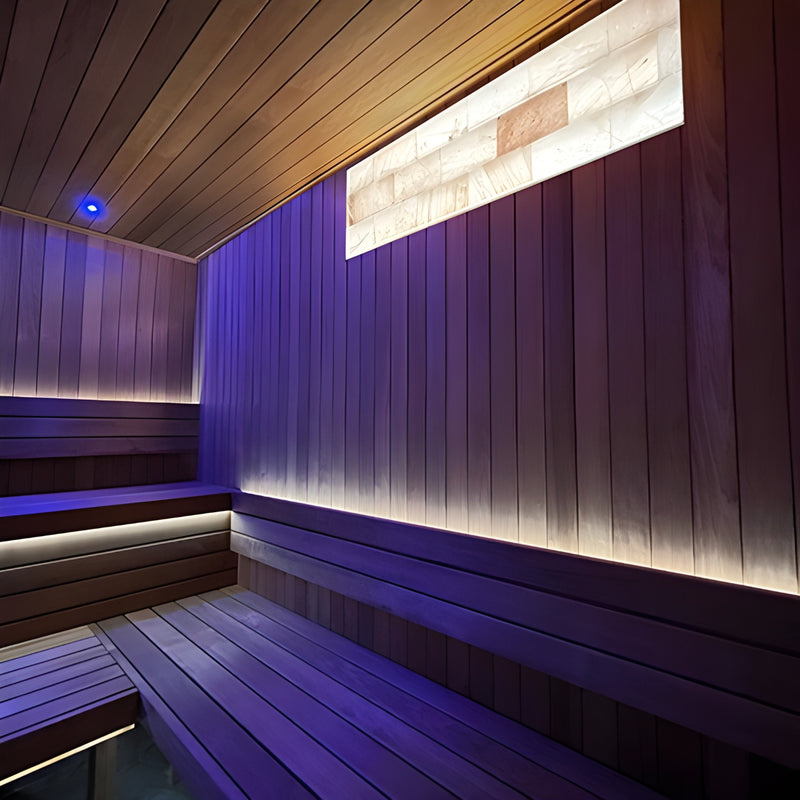

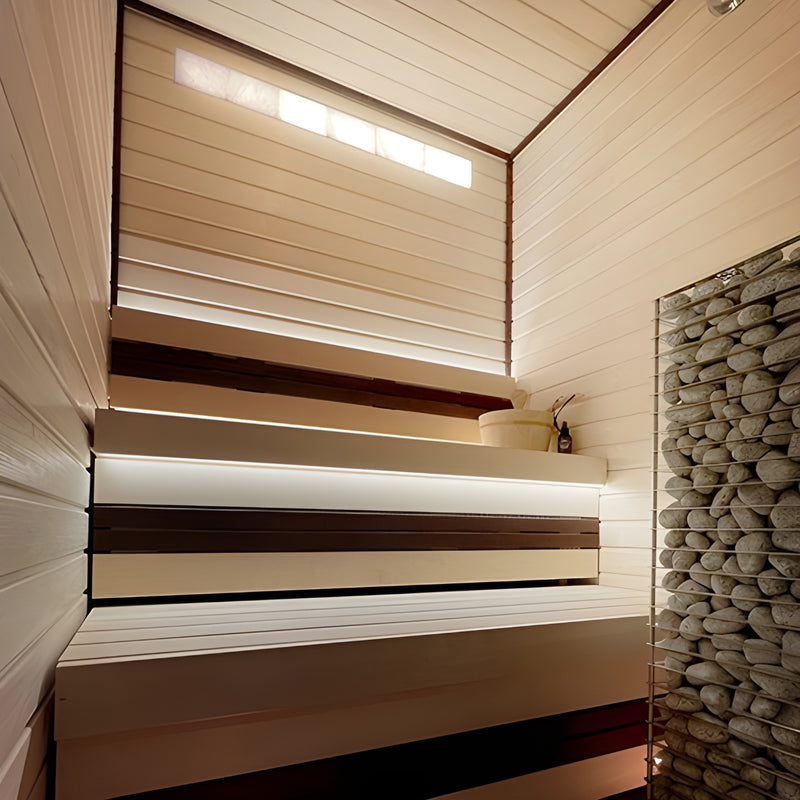

Transform your sauna into a sanctuary with this premium Himalayan salt light installation. Featuring authentic pink salt blocks from the Kherwa Salt Mine, this 4-foot-wide fixture combines aesthetic elegance with wellness benefits. The dot-less LED technology creates seamless, radiant illumination that appears to glow from within the salt itself, while the thick salt blocks are believed to support air purification and respiratory wellness. Available in multiple heights, the kit includes pre-cut salt slabs, stainless-steel mounting channel, IP67 light strips, and all necessary hardware for professional-grade DIY installation. The modular design allows customization and easy maintenance, delivering a sophisticated focal point that enhances both the ambiance and therapeutic experience of your sauna sessions.
Features
- Authentic Himalayan Salt Bricks
- Warm Ambient Glow
- Ability to operate through existing Sauna Power Unit
- Low-voltage LED Lights
Includes
- Himalayan Salt Brick, Pink
-
Salt Block Mounting Channel
-
IP67 LED Strip Light
-
Power Supply
-
Light Cables
Specifications
|
Size
|
4" x 48"
|
|
Salt Brick Color
|
Pink
|
|
Salt Brick Dimensions
|
4"H x 8"W x 2"D
|
|
Salt Feature Dimensions
|
4"H x 48"W x 4 1/8"D
|
|
Salt Brick Weight
|
5 lbs
|
|
Salt Feature Weight
|
34 lbs
|
|
Mounting Channel Dimensions
|
15/16”H x 47 3/4”W x 2 7/8”D
|
|
Mounting Channel Weight
|
1.6 lbs
|
|
Mounting Channel Material
|
Stainless Steel
|
|
LED Strip Quantity
|
1
|
|
LED Wattage
|
12W (White)
|
|
Power Supply
|
90W
|
|
Size
|
12" x 48"
|
|
Salt Brick Color
|
Pink
|
|
Salt Brick Dimensions
|
4"H x 8"W x 2"D
|
|
Salt Feature Dimensions
|
12 1/4”H x 48”W x 4 1/8”D
|
|
Salt Brick Weight
|
5 lbs
|
|
Salt Feature Weight
|
97 lbs
|
|
Mounting Channel Dimensions
|
15/16"H x 47 3/4"H x 2 7/8"D
|
|
Mounting Channel Weight
|
1.6 lbs
|
|
Mounting Channel Material
|
Stainless Steel
|
|
LED Strip Quantity
|
3
|
|
LED Wattage
|
36W (White)
|
|
Power Supply
|
90W
|
|
Size
|
16" x 48"
|
|
Salt Brick Color
|
Pink
|
|
Salt Brick Dimensions
|
4"H x 8"W x 2"D
|
|
Salt Feature Dimensions
|
16 3/8"H x 48"W x 4 1/8"D
|
|
Salt Brick Weight
|
5 lbs
|
|
Salt Feature Weight
|
124 lbs
|
|
Mounting Channel Dimensions
|
15/16"H x 47 3/4"W x 2 7/8"D
|
|
Mounting Channel Weight
|
1.6 lbs
|
|
Mounting Channel Material
|
Stainless Steel
|
|
LED Strip Quantity
|
4
|
|
LED Wattage
|
48W (White)
|
|
Power Supply
|
90W
|
|
Himelayan Salt Brick
|
Pink/White
|
|
Dimensions
|
4”H x 8”L x 2”D
|
|
Color
|
Pink or White
|
|
Channel Notch
|
All 4 Sides
|
|
Weight
|
5 lbs
|
|
White LED
|
4 ft
|
|
Operating Voltage
|
24 VDC
|
|
Rated Wattage
|
3W/ft
|
|
Actual Wattage
|
12W
|
|
Lumens
|
330
|
|
Connection
|
IP67 Twist Lock 2 Pin
|
|
Connection Length
|
10"
|
|
Operating Temperature
|
-13°F to 230°F
|
|
IP Rating
|
IP67
|
|
Certification
|
ETL/SGS
|
|
90W Power Supply
|
|
|
Input Voltage
|
120 VAC
|
|
Output Voltage
|
24 VDC
|
|
Power Consumption
|
90W
|
|
Nominal AC Amperage
|
1.3A
|
|
Nominal DC Amperage
|
3.75A
|
|
Operating Temperature
|
-22° to 158°
|
|
IP Rating
|
IP20
|
|
Certification
|
UL/CE/FCC
|
|
RF Driver
|
Use for all systems
|
|
Input Voltage
|
24 VDC
|
|
Output Voltage
|
12-24 VDC
|
|
Rated Out Current
|
5CH, 3A/CH
|
|
Max Output Power
|
5CH x 72W
|
|
Light Capacity
|
4 Lights/25' (Per Driver)
|
|
Operating Temperature
|
-22°F to 131°F
|
|
IP Rating
|
IP20
|
|
Certification
|
UL/CE/FCC
|
Technical
Installation and Operation Manual
PROSAUNAS-Universal-Sauna-Salt-Feature-4x48-Framed-Dimensions-REV1-05-2025.pdf
PROSAUNAS-Universal-Sauna-Salt-Feature-12x48-Framed-Dimensions-REV1-05-2025.pdf
PROSAUNAS-Universal-Sauna-Salt-Feature-16x48-Framed-Dimensions-REV1-05-2025.pdf
