Harvia WZ115100

Description

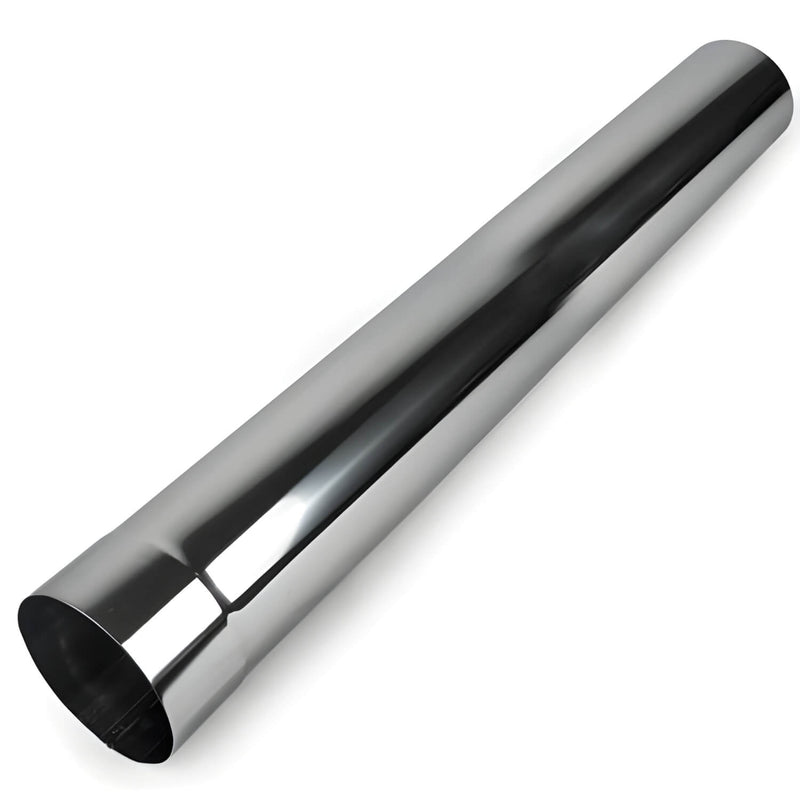

This single-wall smoke pipe accommodates both custom installations and system extensions for Harvia wood-fired sauna heaters with standard 4.5" chimney connections. Engineered for interior, open-air use, it adheres to international fire and safety protocols. For applications passing through walls or ceilings, double-wall construction is recommended. Compatible with all Harvia wood-burning models except the 50-series, which requires a 5.5" connection.

Features

• Single-wall smoke pipe (non-insulated)

• For use inside in open-air area (use double wall when passing thru wall/ceiling)

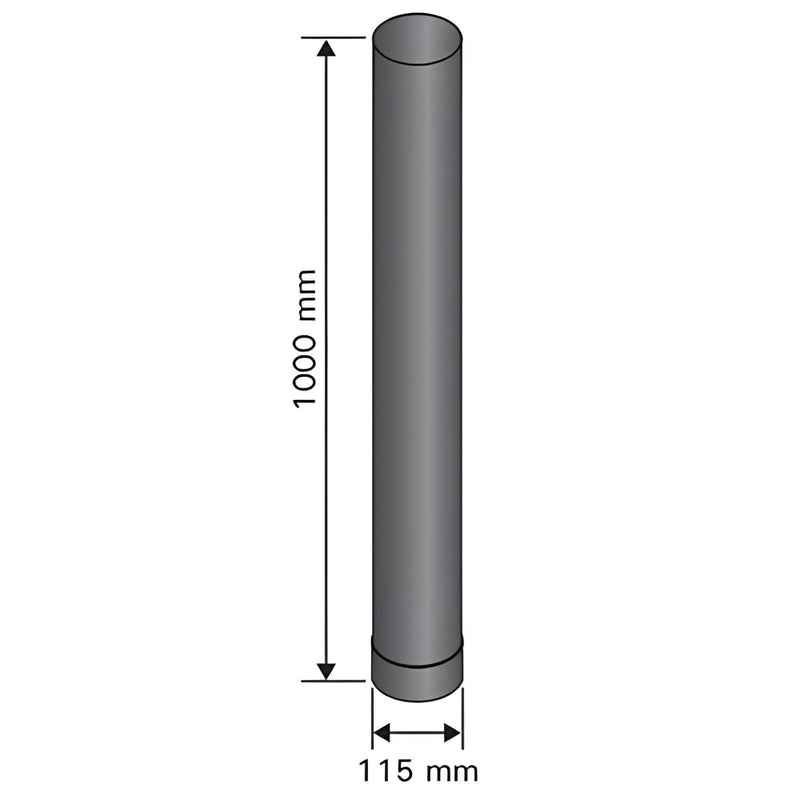

• Fits on all Harvia wood-fired sauna heaters which have a standard 4.5" chimney connection (except for Harvia 50 wood-burning heater which is 5.5")
• Flanged pipe so that multiple sections can be connected together
• Can be cut to desired length
• Seal the joints with fire-proof intumescent sealant with a temperature resistance of at least 1,832 F (1000 C)
• Made in Finland
• 2-year warranty (Consumer use)

Includes

• Smoke Pipe


Specifications

Technical

Installation and Operation Manual
