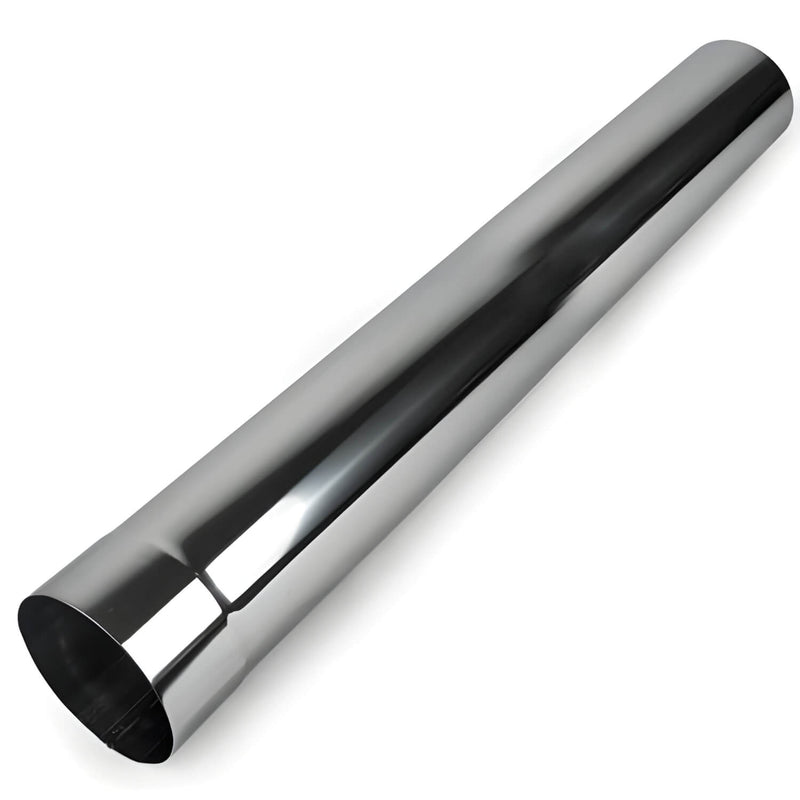

Chrome exhaust pipe on a white background

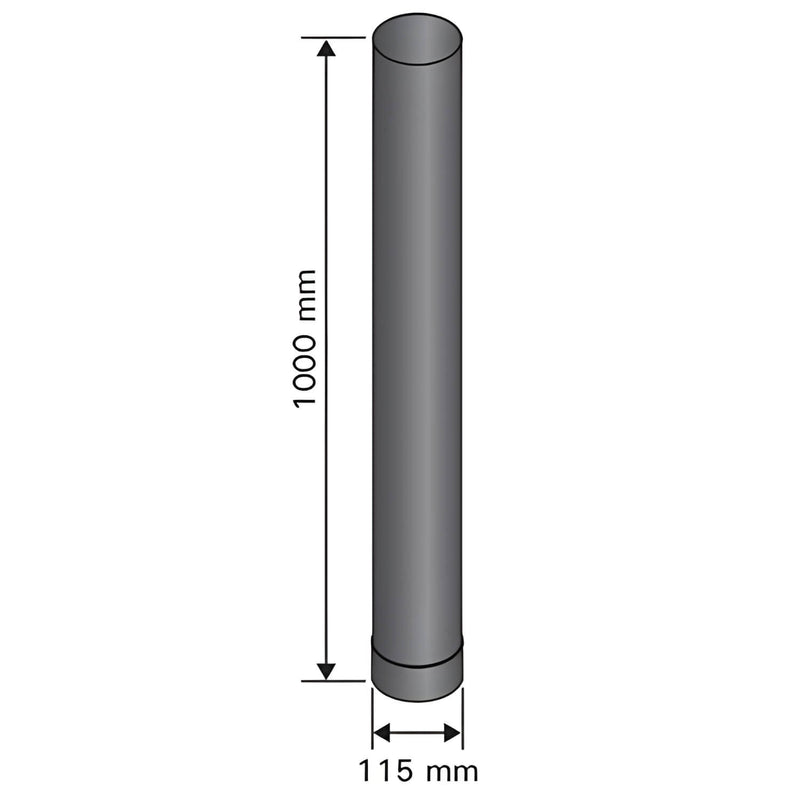

Measurement chart of a cylindrical object with dimensions labeled
Chrome exhaust pipe on a white background
Measurement chart of a cylindrical object with dimensions labeled

Harvia WZ100M

Smoke Pipe, Sauna Wood Stove, 1m, 115mm

by Harvia
Sold out
$173.33 - $173.33
$173.33
$173.33 - $173.33
$173.33

Description

This can be used for your custom chimney setup or to extend the length of the Harvia wood fired sauna stove chimney kits. It complies with all international fire and operational safety requirements to help keep your heater safe.

Features

  • Single-wall smoke pipe (non-insulated)
  • For use inside in open-air area (use double wall when passing thru wall/ceiling)
  • Fits on all Harvia wood-fired sauna heaters which have a standard 4.5" chimney connection (except for Harvia 50 wood-burning heater which is 5.5")
  • Flanged pipe so that multiple sections can be connected together
  • Can be cut to desired length
  • Seal the joints with fire-proof intumescent sealant with a temperature resistance of at least 1,832 F (1000 C)
  • Made in Finland
  • 2-year warranty (Consumer use)

Includes

  • Smoke Pipe

Specifications

Model

WZ100M

Construction Material

Steel

Finish

Black

Diameter

4.5" (12 cm)

Height

39.4" (100 cm)

Weight

4.4 lbs (2 kg)

Technical

Installation and Operation Manual
